Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install 3rd one-way clutch in front sun gear.
    CAUTION: Apply ATF to 3rd one-way clutch.

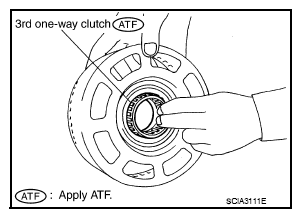

    Fig 1: Removing/Installing 3rd One-Way Clutch From Front Sun Gear
    G08165649Courtesy of NISSAN NORTH AMERICA, INC.
  2. Install snap ring in front sun gear using suitable tool.

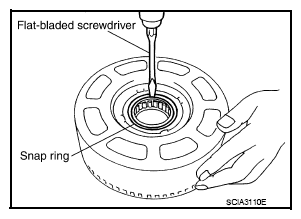

    Fig 2: Removing/Installing Snap Ring From Front Sun Gear Using Screwdriver
    G08165650Courtesy of NISSAN NORTH AMERICA, INC.
  3. Check operation of 3rd one-way clutch.
    1. Hold oil pump assembly and turn front sun gear.
    2. Check 3rd one-way clutch for correct locking and unlocking directions.
      CAUTION: If not as shown, check installation direction of 3rd one-way clutch.

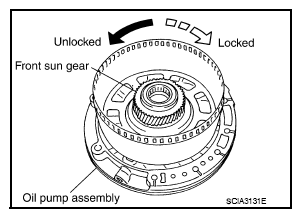

      Fig 3: Checking 3rd One-Way Clutch For Correct Locking And Unlocking Directions
      G08165651Courtesy of NISSAN NORTH AMERICA, INC.
