Removal and Installation: Installation

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new rear oil seal until it is flush into the rear extension case (2WD models) using Tool or adapter case (4WD models) using suitable tool.

    Tool number: ST33400001 (J-26082)

    CAUTION:
    • Apply ATF to rear oil seal.
    • Do not reuse rear oil seal.
  2. Install transfer to transmission (4WD models). Refer to "UNIT REMOVAL AND INSTALLATION " (ATX14B), "UNIT REMOVAL AND INSTALLATION " (TX15B).
  3. Install rear propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION " (2S1330) or "UNIT REMOVAL AND INSTALLATION " (2S1350).
  4. Check the A/T fluid level and for fluid leaks. Refer to PERIODIC MAINTENANCE .

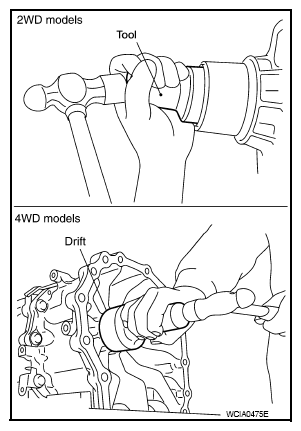

    Fig 1: Removing/Installing Extension Case Rear Oil Seal Using Tool (2WD And 4WD Models)
    G08165513Courtesy of NISSAN NORTH AMERICA, INC.
