Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center console. Refer to "REMOVAL AND INSTALLATION ".
Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
Unlock slider from adjuster holder by squeezing lock tabs.
Remove casing cap from bracket of control device assembly and remove interlock rod from adjuster holder.

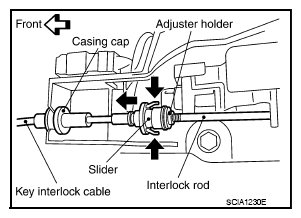

Fig 1: Removing Casing Cap From Control Device Assembly Bracket
Courtesy of NISSAN NORTH AMERICA, INC.
Remove holder from key cylinder and remove key interlock cable.

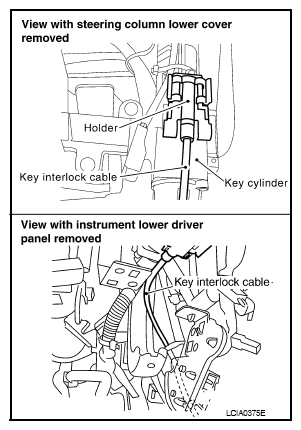

Fig 2: Identifying Key Interlock Cable, Key Cylinder And Holder
Courtesy of NISSAN NORTH AMERICA, INC.
