4WD: Removal and Installation: Installation

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION:

Install air breather hose with paint mark at upper side.
When installing an air breather hose, do not crush or block by folding or bending the hose.
When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the tube bend portion.
Make sure clip is securely installed to bracket.

CAUTION: Make sure there are no pinched or restricted areas on each air breather hose caused by folding or bending when installing it.

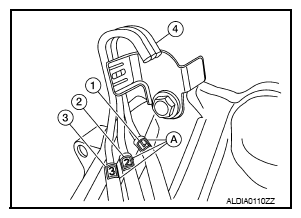

Install each air breather hose into the breather tube (4). Set each air breather hose with paint mark facing upward.
- A/T breather hose (1)
- Transfer breather hose (2)
- Actuator/transfer motor breather hose (3)
- Paint marks (A)

  Fig 1: Identifying Breather Tube, Paint Marks, Transfer And Actuator/Transfer Motor Breather Hose
  Courtesy of NISSAN NORTH AMERICA, INC.

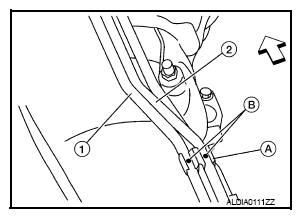

Install actuator/transfer motor air breather hose (1) and transfer air breather hose (2) on clip (A) with the paint mark (B) facing upward.
- <=: Front

  Fig 2: Identifying Actuator/Transfer Motor Air Breather Hose And Clip With Paint Mark
  Courtesy of NISSAN NORTH AMERICA, INC.

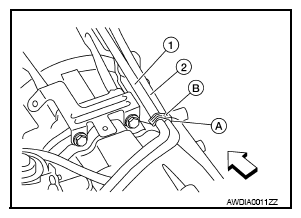

Install clip (B) on actuator/transfer motor air breather hose (1) and transfer air breather hose (2) with the paint mark (A) matched.
- <=: Front

  Fig 3: Identifying Actuator/Transfer Motor Air Breather Hose, Clip On And Transfer Air Breather Hose
  Courtesy of NISSAN NORTH AMERICA, INC.

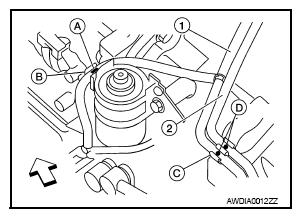

Install actuator/transfer motor air breather hose (1) and transfer air breather hose (2) on clip (B) and clip (C) with the paint mark (A) and (D) facing upward.
- <=: Front

  Fig 4: Identifying Actuator/Transfer Motor Air Breather Hose And Clips
  Courtesy of NISSAN NORTH AMERICA, INC.

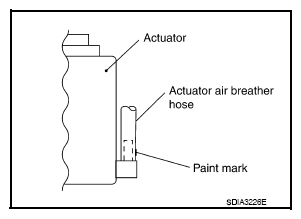

Install the actuator air breather hose into the actuator (case connector) until the hose end reaches the base of the tube. Set actuator air breather hose with paint mark facing leftward.

Fig 5: Identifying Actuator, Air Breather Hose And Paint Mark
Courtesy of NISSAN NORTH AMERICA, INC.

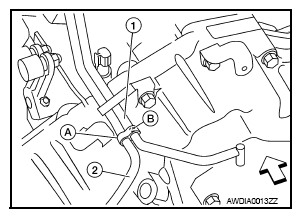

Install clip (B) on transfer motor air breather hose (2) and transfer air breather hose (1) with the paint mark (A) matched.
- <=: Front

  Fig 6: Identifying Transfer Motor Air Breather Hose, Clip With Paint Marks
  Courtesy of NISSAN NORTH AMERICA, INC.

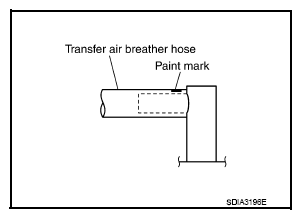

Install the transfer air breather hose into the breather tube (transfer, metal connector) until the hose end reaches the base of the tube. Set transfer air breather hose with paint mark facing upwards.

Fig 7: Identifying Transfer Air Breather Hose And Paint Mark
Courtesy of NISSAN NORTH AMERICA, INC.

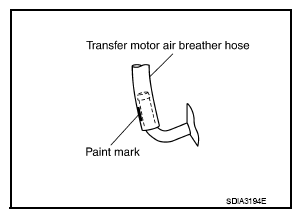

Install the transfer motor air breather hose into the transfer motor (case connector) until the hose end reaches the end of the curved section. Set transfer motor air breather hose with paint mark facing leftward.

Fig 8: Identifying Transfer Motor Air Breather Hose And Paint Mark
Courtesy of NISSAN NORTH AMERICA, INC.
