A/T Fluid Cooler Inspection Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the coffee filter for debris.
    1. If small metal debris less than 1mm (0.040 in) in size or metal powder is found in the coffee filter, this is normal. If normal debris is found, the A/T fluid cooler/radiator can be re-used and the procedure is ended.

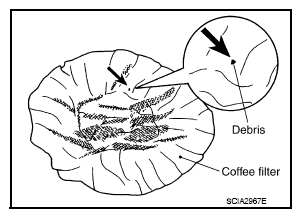

      Fig 1: Identifying Coffee Filter And Debris
      G08165466Courtesy of NISSAN NORTH AMERICA, INC.
    2. If one or more pieces of debris are found that are over 1mm (0.040 in) in size and/or peeled clutch facing material is found in the coffee filter, the fluid cooler is not serviceable. The A/T fluid cooler/radiator must be replaced and the inspection procedure is ended. Refer to "REMOVAL AND INSTALLATION " for (VQ40DE) "REMOVAL AND INSTALLATION " for (VK56DE).

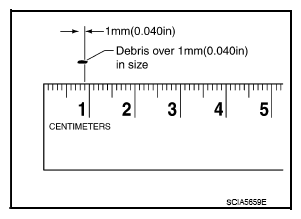

      Fig 2: Checking Debris Size Using Scale
      G08165467Courtesy of NISSAN NORTH AMERICA, INC.
