Manual Mode Switch
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

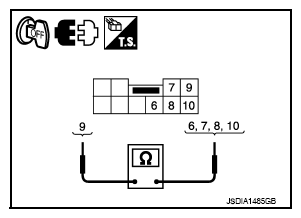

Check continuity between A/T shift selector connector (A) terminals.
| Item |
Position |
Terminal |
Continuity |
| Manual mode select switch |
Auto |
9 - 10 |
Yes |
| Manual |
6 - 9 |
| Manual mode position select switch |
UP |
8 - 9 |
| DOWN |
7 - 9 |
Courtesy of NISSAN NORTH AMERICA, INC.
