A/T Fluid Temperature Sensor

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove control valve with TCM. Refer to "REMOVAL AND INSTALLATION ".
  2. Check resistance between transmission range switch connector (A) terminals.
    Name Terminal Temperature °C (°F) Resistance (Approx.)
    A/T fluid temperature sensor 6 - 7 "A/T FLUID TEMPERATURE SENSOR "

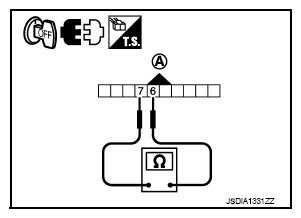

    Fig 1: Checking Resistance Between Transmission Range Switch Connector Terminals No. 6 And 7
    G08165406Courtesy of NISSAN NORTH AMERICA, INC.
  3. If NG, replace the control valve with TCM. Refer to "REMOVAL AND INSTALLATION ".
