Removal and Installation: Installation
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
- Apply sealant to clips securing upper step pad during installation.

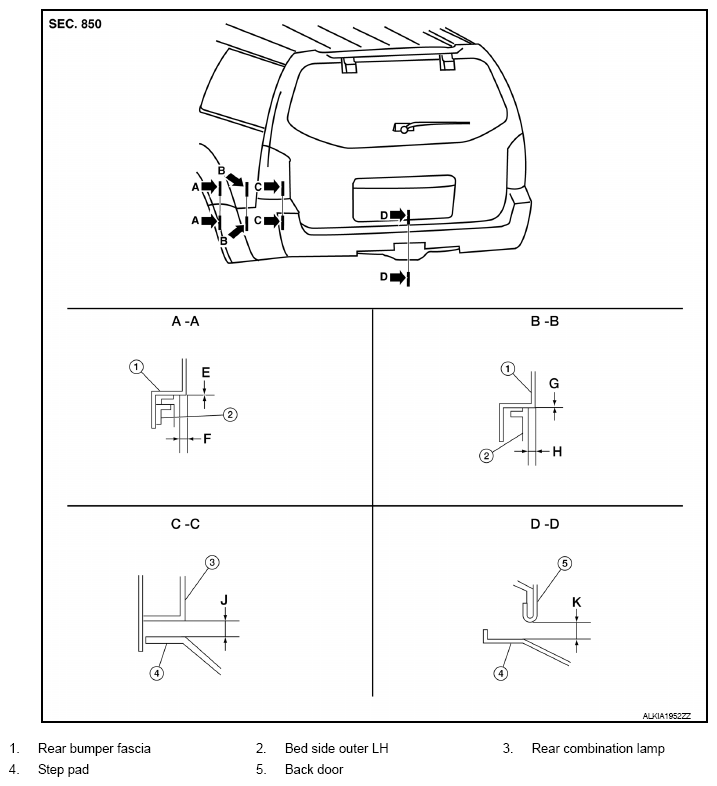

| Units: mm (in) | ||||
|---|---|---|---|---|
| Portion | Measurement | Standard | Difference (MAX) | |
| A-A | E | Clearance | 0.0 (0.000) | + 1.0 (0.039) |
| F | Surface height | 0.8 (0.031) | + 1.0 (0.039) | |
| B-B | G | Clearance | 0.0 (0.000) | ± 1.0 (0.039) |
| H | Surface height | 0.8 (0.031) | ± 1.0 (0.039) | |
| C-C | J | Clearance | 3.0 (0.118) | ± 1.5 (0.059) |
| D-D | K | Clearance | 7.2 (0.283) | ± 2.0 (0.079) |
