Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ignition coils. Refer to "REMOVAL AND INSTALLATION ".
Move the harness on the upper rocker cover and its peripheral aside.
Loosen the rocker cover bolts in reverse order shown using power tool.
- <=: Engine front
- A: Rocker cover (LH)
- B: Rocker cover (RH)
CAUTION: Do not hold the rocker cover (RH) (B) by the oil filler neck.

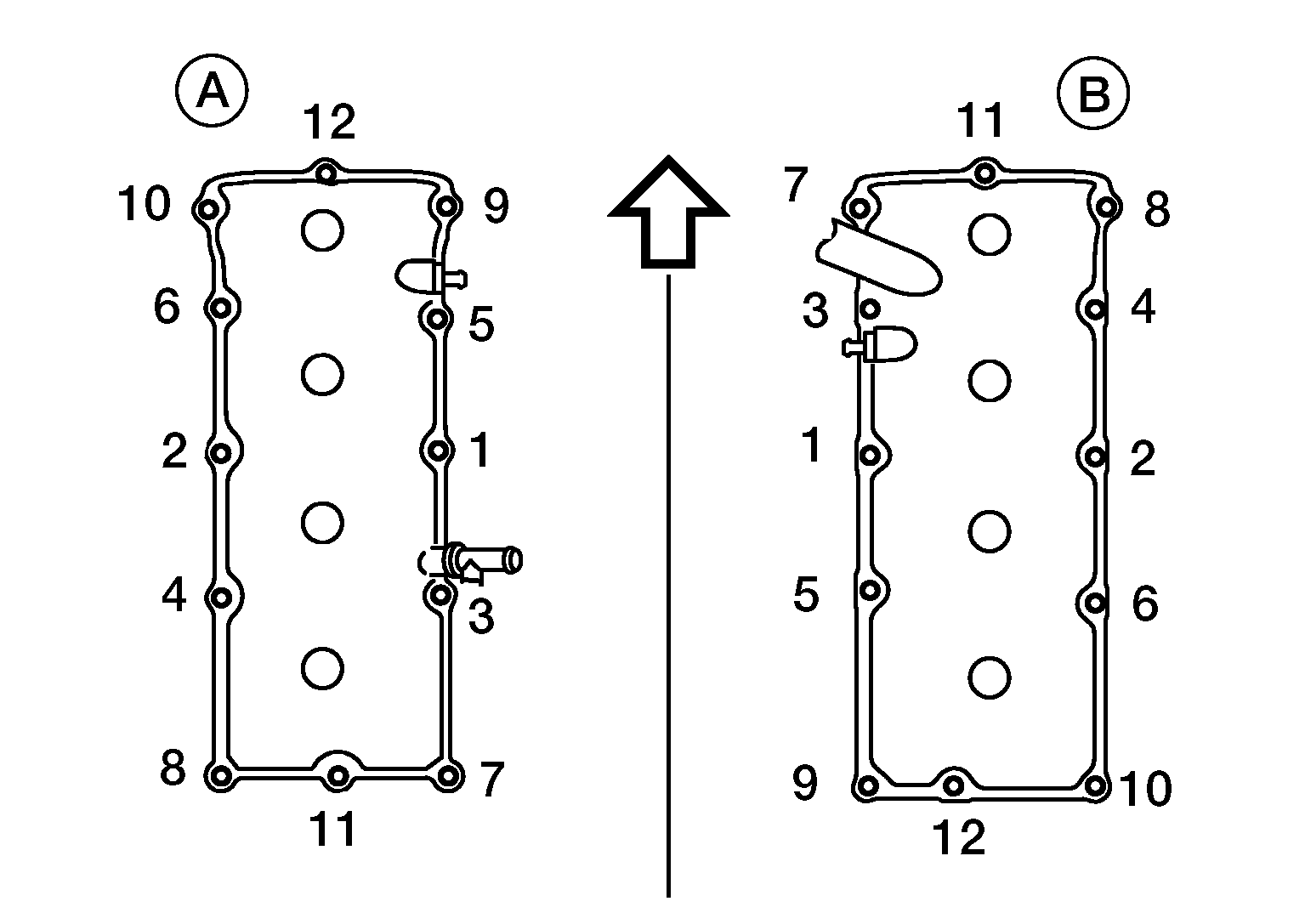

Fig 1: Identifying Rocker Cover Bolts (With Tightening Sequence)
Courtesy of NISSAN NORTH AMERICA, INC.
