Removal and Installation: Installation

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

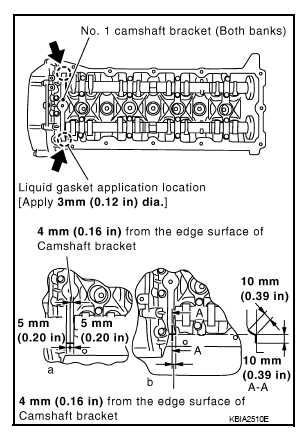

Apply liquid gasket to the joint part of the cylinder head and camshaft bracket following the steps below.
NOTE: Illustration shows an example of (LH) side (zoomed in shows No. 1 camshaft bracket).
1. Apply liquid gasket to the joint part of No. 1 camshaft bracket and cylinder head "a".
2. Apply liquid gasket 90° "b" to illustration "a".
Use Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

Fig 1: Identifying Rocker Cover Liquid Gasket Area
Courtesy of NISSAN NORTH AMERICA, INC.

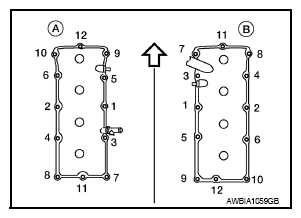

Install the rocker cover and tighten the bolts in two steps in the order shown.
- <=: Engine front
- A: Rocker cover (LH)
- B: Rocker cover (RH)
CAUTION:
- Do not hold the rocker cover (RH) (B) by the oil filler neck.
- Make sure the new rocker cover gasket is installed in the groove of the rocker cover.
1st step: 2.0 N.m (0.2 kg-m, 18 in-lb)

2nd step: 8.3 N.m (0.85 kg-m, 73 in-lb)

Fig 2: Identifying Rocker Cover Bolts With Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.
Install the PCV hoses.
NOTE:
- Remove foreign materials from inside the hose using compressed air.
- The inserted length is within 25 - 30 mm (0.98 - 1.18 in) [Target: 25 mm (0.98 in)].
Installation of the remaining components is in the reverse order of removal.
