Section 2222 (Engine Mechanical (VK56DE))
>>
Removal And Installation
>>
Exhaust Manifold And Three Way Catalyst
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

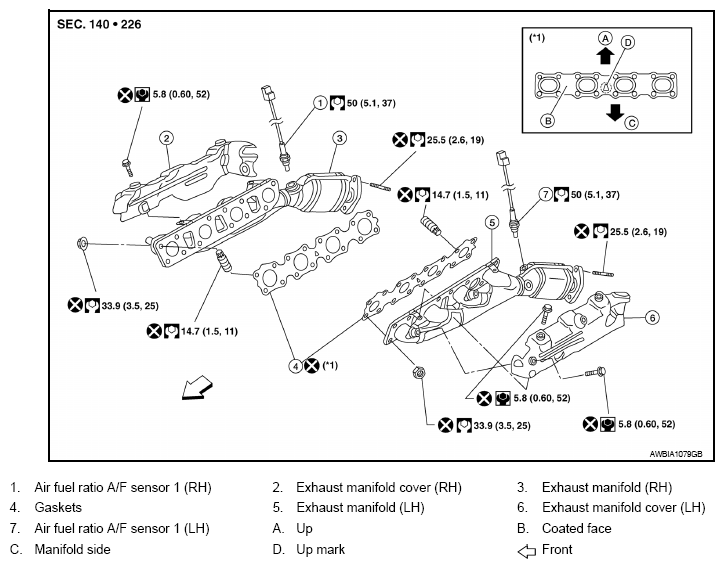

Fig 1: Exploded View Of Exhaust Manifold And Three Way Catalyst
Courtesy of NISSAN NORTH AMERICA, INC.
