Exploded View

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

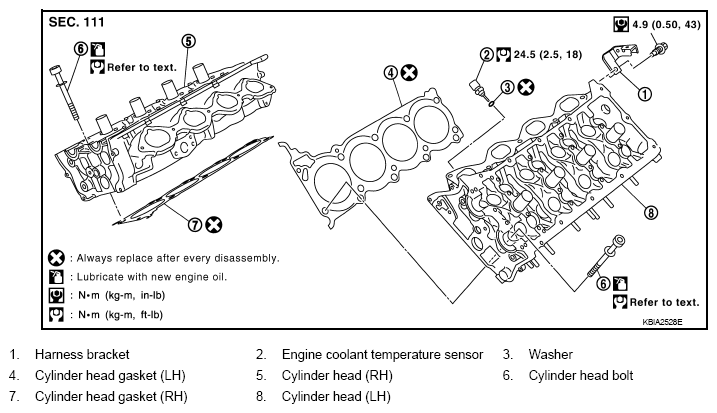

Fig 1: Exploded View Of Cylinder Head With Torque Specifications
G08164543Courtesy of NISSAN NORTH AMERICA, INC.

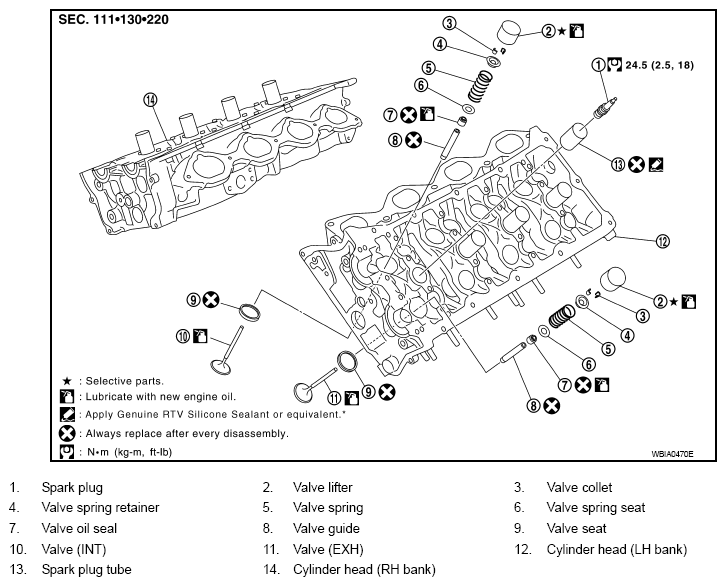

Fig 1: Exploded View Of Cylinder Head With Torque Specifications (LH And RH Bank)
G08164548Courtesy of NISSAN NORTH AMERICA, INC.
