Removal (LH)

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine room cover, (if equipped) using power tool. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove air duct and resonator assembly. Refer to "EXPLODED VIEW ".
  3. Separate engine harness removing their brackets from rocker covers.
  4. Remove harness bracket from cylinder head, if necessary.
  5. Disconnect and remove the intake valve timing control solenoid valve (LH bank). Refer to "EXPLODED VIEW ".
  6. Remove the ignition coils. Refer to "REMOVAL AND INSTALLATION ".
  7. Remove the PCV hoses from rocker covers.
  8. Remove the oil filler cap from rocker cover (LH), if necessary.
  9. Loosen the rocker cover bolts with power tool in reverse order as shown.
    • <=: Front

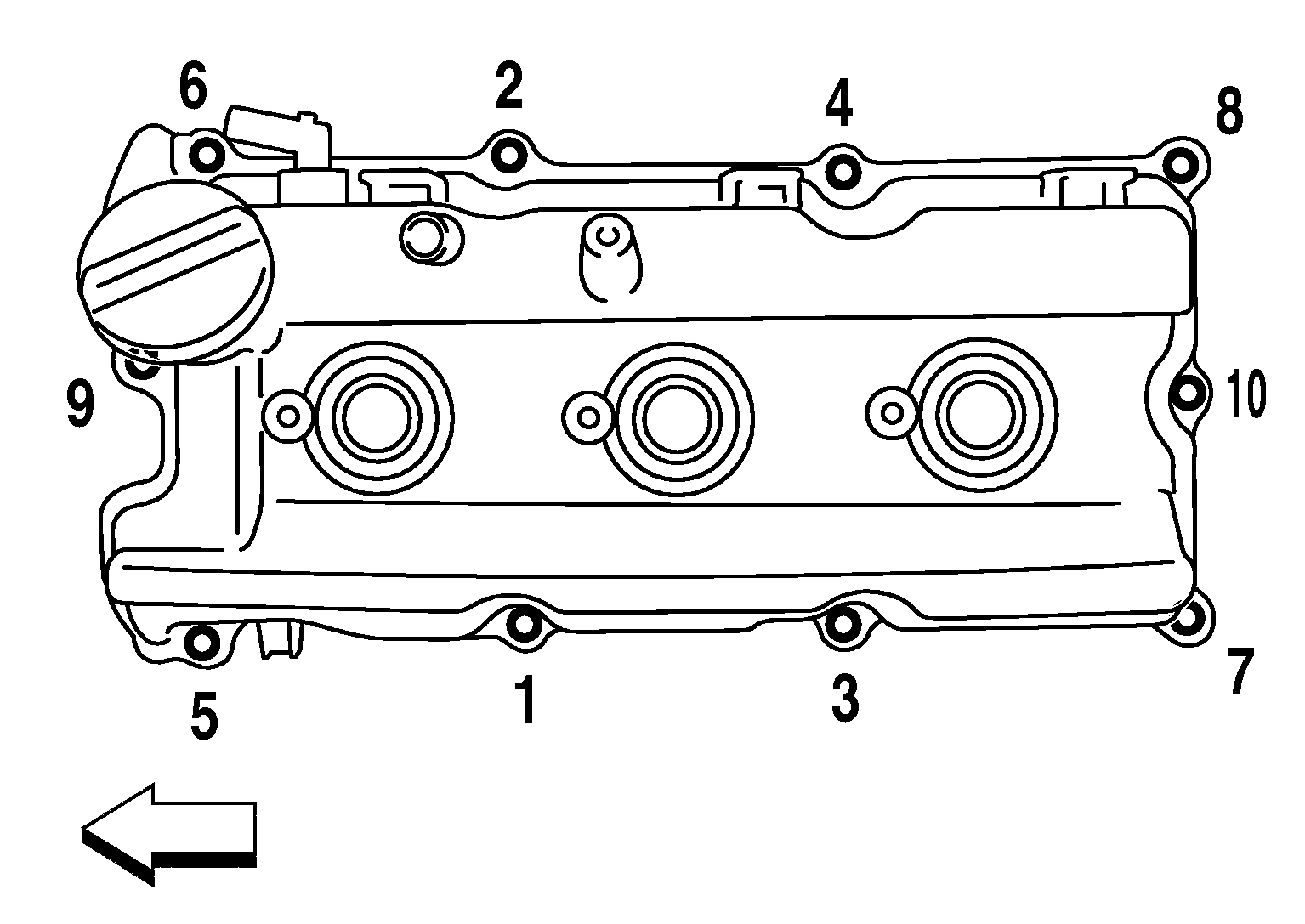

      Fig 1: Tightening Sequence Of Rocker Cover Bolts
      G05880564Courtesy of NISSAN NORTH AMERICA, INC.
  10. Remove rocker cover.
  11. Remove rocker cover gaskets from rocker covers.
  12. Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1).
    CAUTION: Do not scratch or damage the mating surface when cleaning off old liquid gasket.
