Installation (RH)

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

NOTE: If necessary, a crowfoot may be used to tighten the exhaust manifold nuts.

Exhaust Manifold Gasket

Install the exhaust manifold gasket in direction as shown.

<=: Front
A: Identification hole

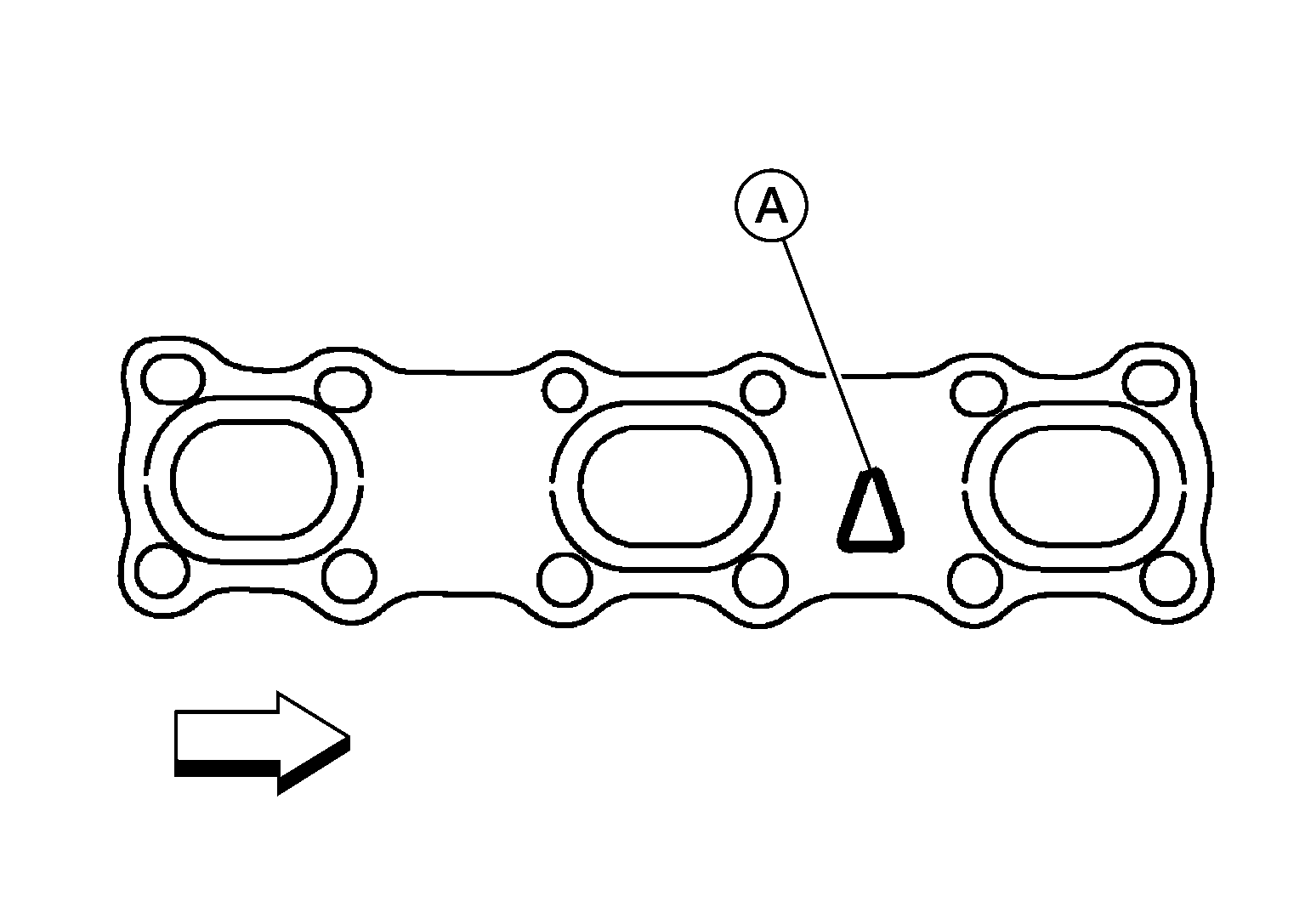

Fig 1: Identification Hole Of Exhaust Manifold Gasket
Courtesy of NISSAN NORTH AMERICA, INC.

Exhaust Manifold

If exhaust manifold studs were removed, install them and tighten to specification.
Install exhaust manifold and tighten nuts in numerical order as shown.
CAUTION: Use new exhaust manifold nuts for installation.

NOTE: Tighten nuts No. 1 and 2 in two steps. The numerical order No. 7 and 8 show second step.

<=: Front

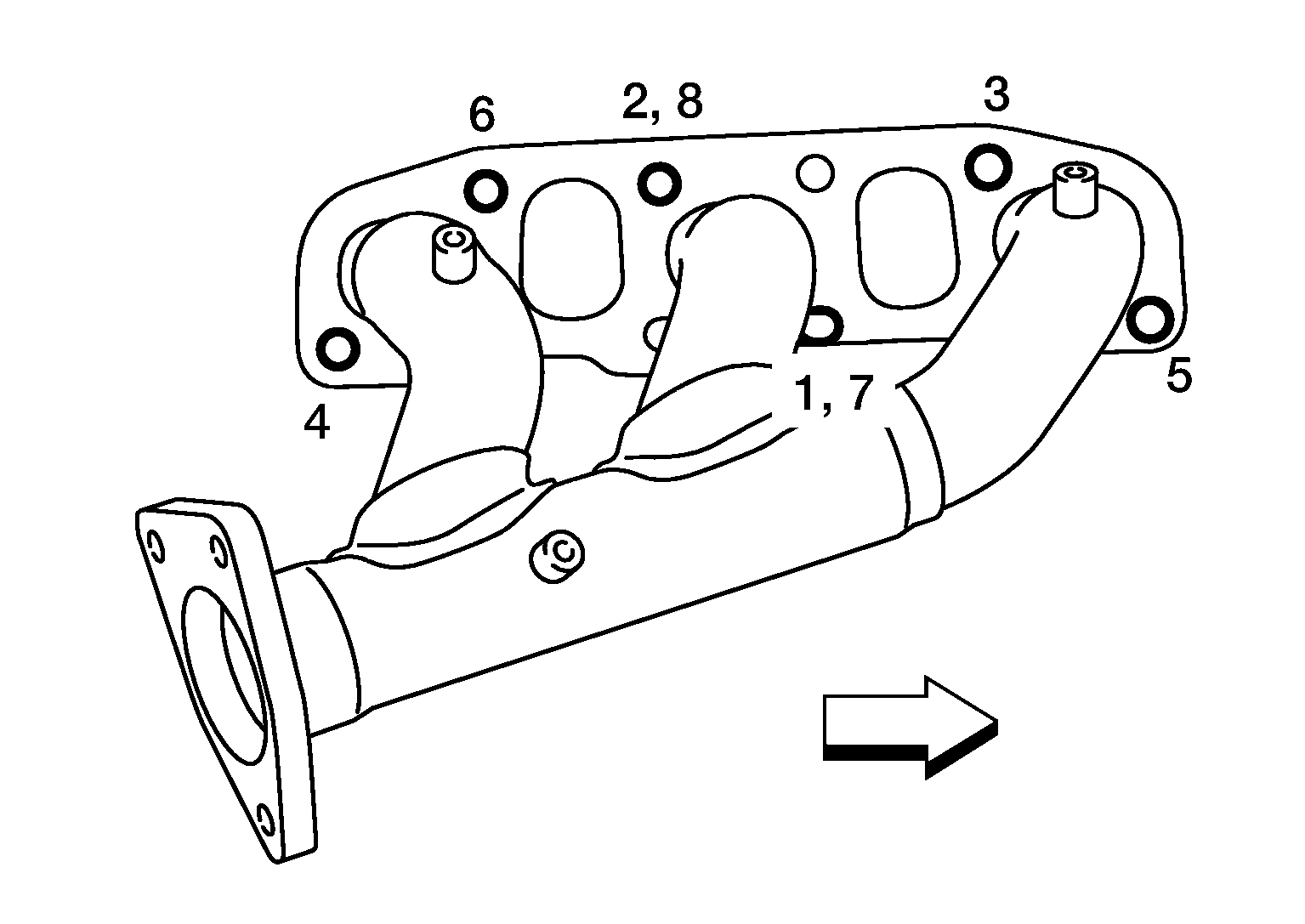

Fig 2: Tightening Sequence Of Exhaust Manifolds Mounting Nuts (RH)
Courtesy of NISSAN NORTH AMERICA, INC.
