Setting Of Service Tools And Equipment

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat. Remove HFC-134a (R-134a) refrigerant from the A/C system using certified service equipment meeting requirements of SAE J2210 HFC-134a (R-134a) recycling equipment or SAE J2201 HFC-134a (R-134a) recovery equipment. If an accidental system discharge occurs, ventilate the work area before resuming service. Additional health and safety information may be obtained from the refrigerant and oil manufacturers.

Discharging Refrigerant

Fig 1: Connecting Refrigeration System Service Tools And Equipment (Discharging Refrigerant)
G08167470Courtesy of NISSAN NORTH AMERICA, INC.

Evacuating System and Charging Refrigerant

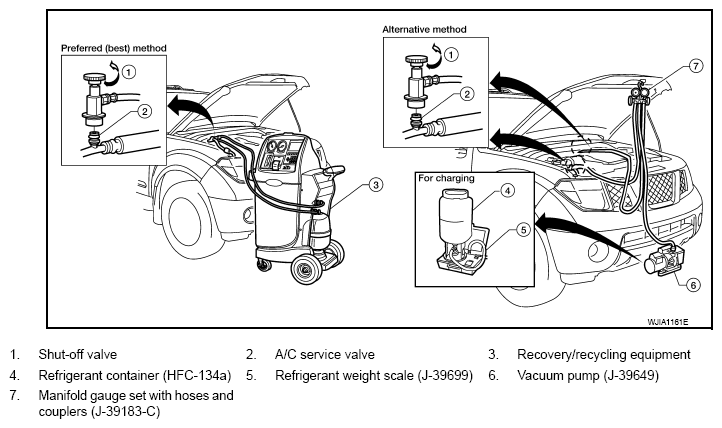

Fig 2: Connecting Refrigeration System Service Tools And Equipment (Evacuating System And Charging Refrigerant)
G08167471Courtesy of NISSAN NORTH AMERICA, INC.
