Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the ambient sensor (1) electrical connector.
    • <=: Front
    NOTE: The ambient sensor is located behind the front grille, below the hood latch.
  3. Release the ambient sensor (1) clip and then remove the ambient sensor.

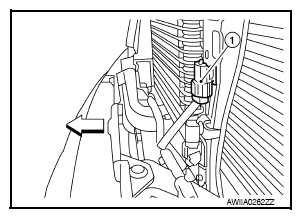

    Fig 1: Identifying Ambient Sensor Electrical Connector
    G08167493Courtesy of NISSAN NORTH AMERICA, INC.
