Routing Illustration

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use illustration to identify drive belt routing. See Fig 1.

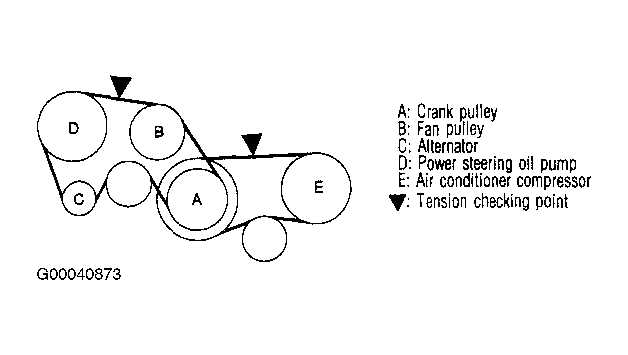

Fig 1: Identifying Drive Belt Routing

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
