Drain Hoses

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

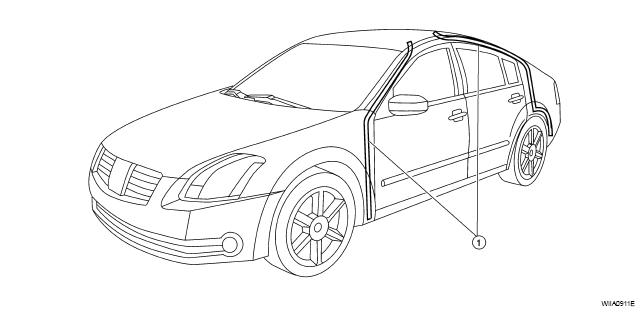

Fig 1: Identifying Drain Hoses

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove headlining to access drain hose connections. Refer to "REMOVAL AND INSTALLATION ".

Fig 2: Checking Drain Hoses For Damage And Deterioration
Courtesy of NISSAN MOTOR CO., U.S.A.
Check visually for proper connections, damage or deterioration.
If leakage occurs around trunk room, remove trunk side trim and check connecting area. Check for proper connection, damage or tear. Refer to "REMOVAL AND INSTALLATION ".
Remove drain hoses and check visually for any damage, cracks or deterioration.
Pour water into drain hoses and find damaged portion.
- If any damaged portion is found at each step, replace the damaged part.
Fig 3: Identifying Rear Fender, Sunroof Drain Hose And Rear Bumper Fascia
Courtesy of NISSAN MOTOR CO., U.S.A.
