Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove center console. Refer to "FRONT CENTER CONSOLE ".
Disconnect warning lamp connector.
Remove all parking brake cable nuts and bolts, loosen and remove adjusting nut.

Fig 1: Identifying Adjusting Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the rear disc rotor. Refer to "REMOVAL AND INSTALLATION OF CALIPER ASSEMBLY AND DISC ROTOR ".
Remove the lock plate bolt.
Remove the pin, then the parking brake cable.

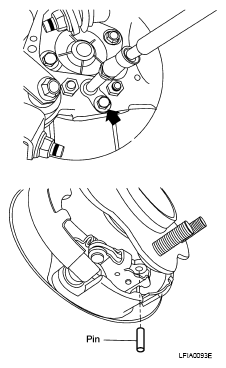

Fig 2: Locating Lock Plate Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
