Wiring Diagram - WIPER -

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

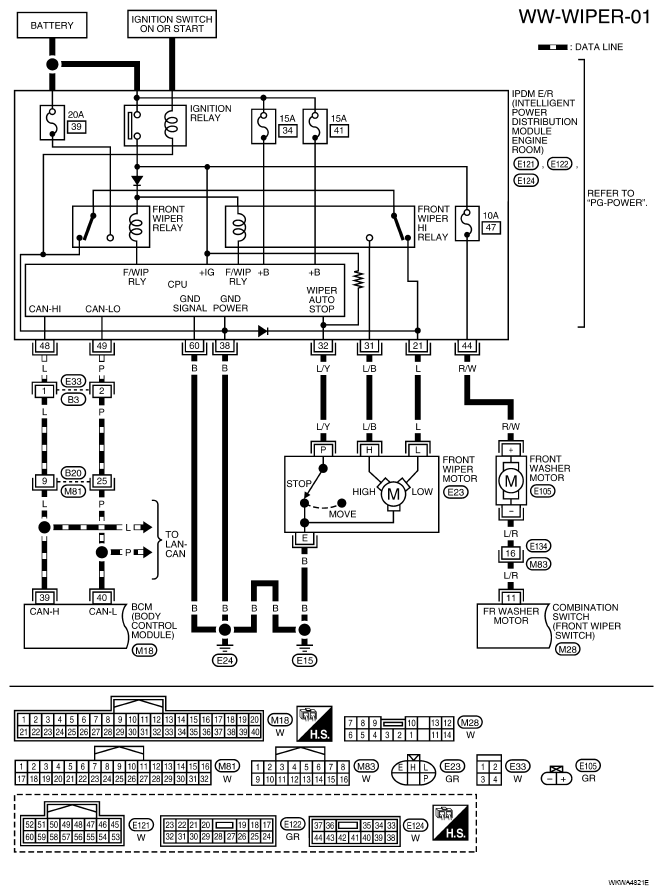

Fig 1: Wiring Diagram - WW-WIPER-01
G04918075Courtesy of NISSAN MOTOR CO., U.S.A.

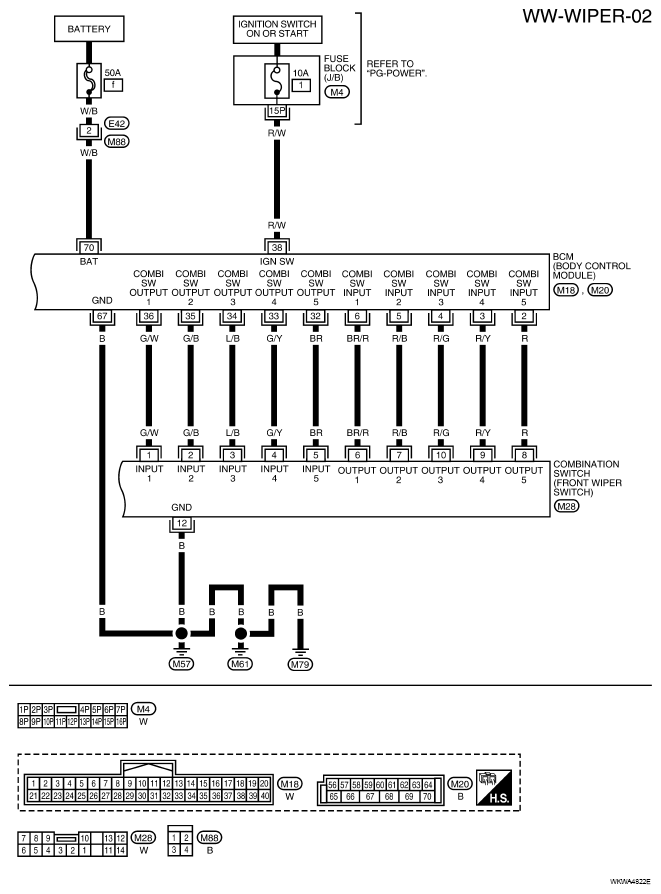

Fig 2: Wiring Diagram - WW-WIPER-02
G04918076Courtesy of NISSAN MOTOR CO., U.S.A.
