Wiring Diagram - DEF -

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

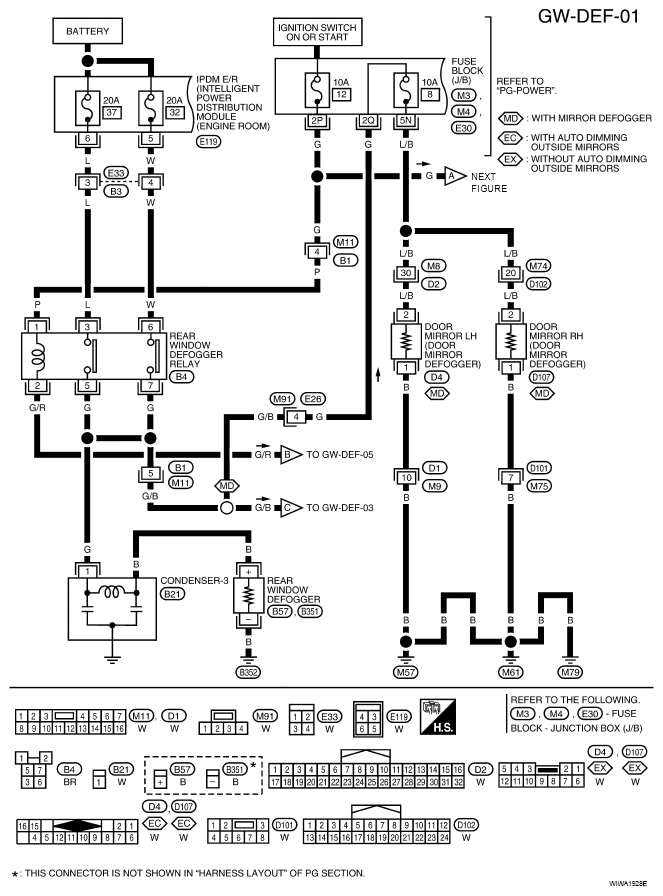

Fig 1: Wiring Diagram -GW-DEF-01

Courtesy of NISSAN MOTOR CO., U.S.A.

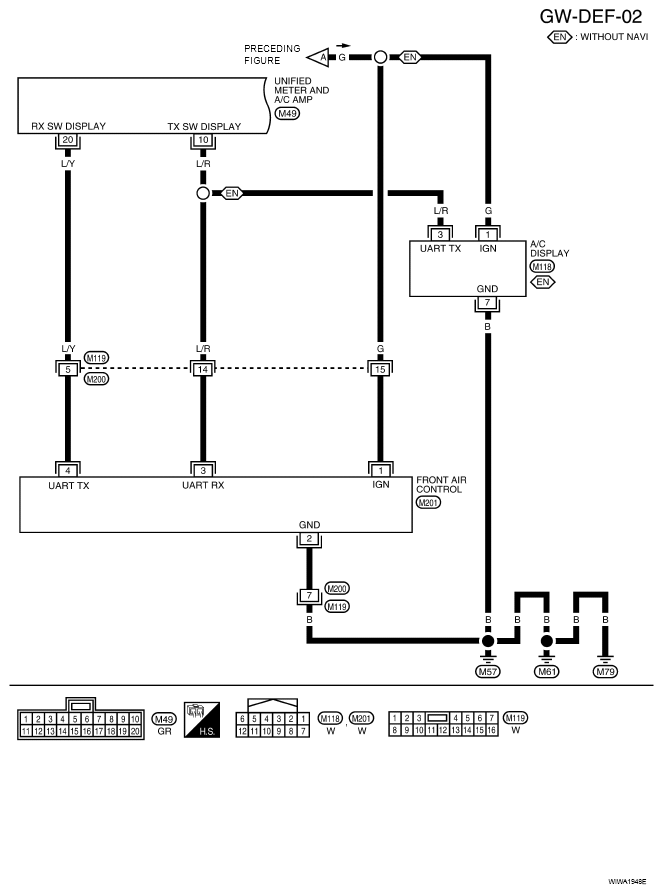

Fig 2: Wiring Diagram -GW-DEF-02

Courtesy of NISSAN MOTOR CO., U.S.A.

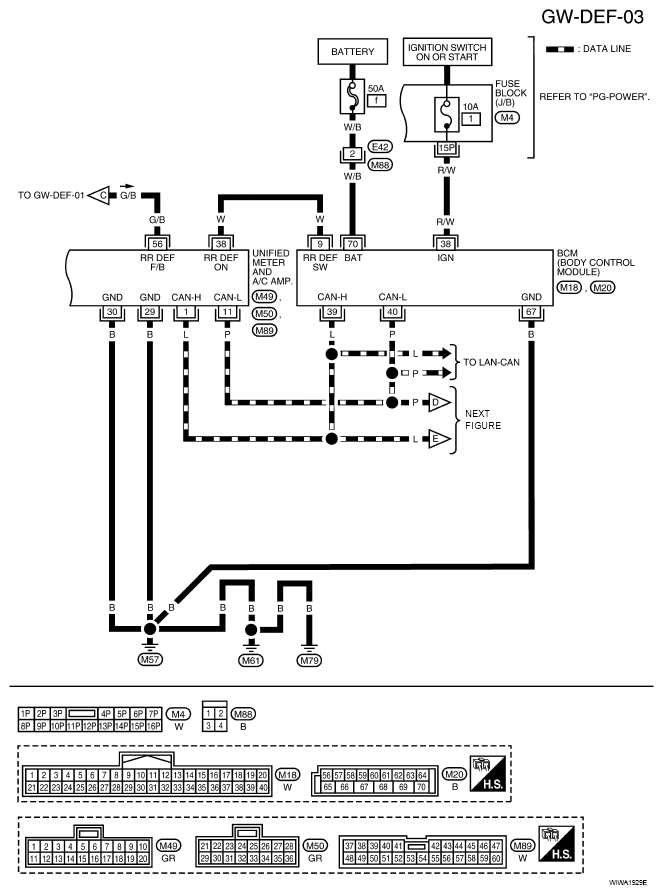

Fig 3: Wiring Diagram -GW-DEF-03

Courtesy of NISSAN MOTOR CO., U.S.A.

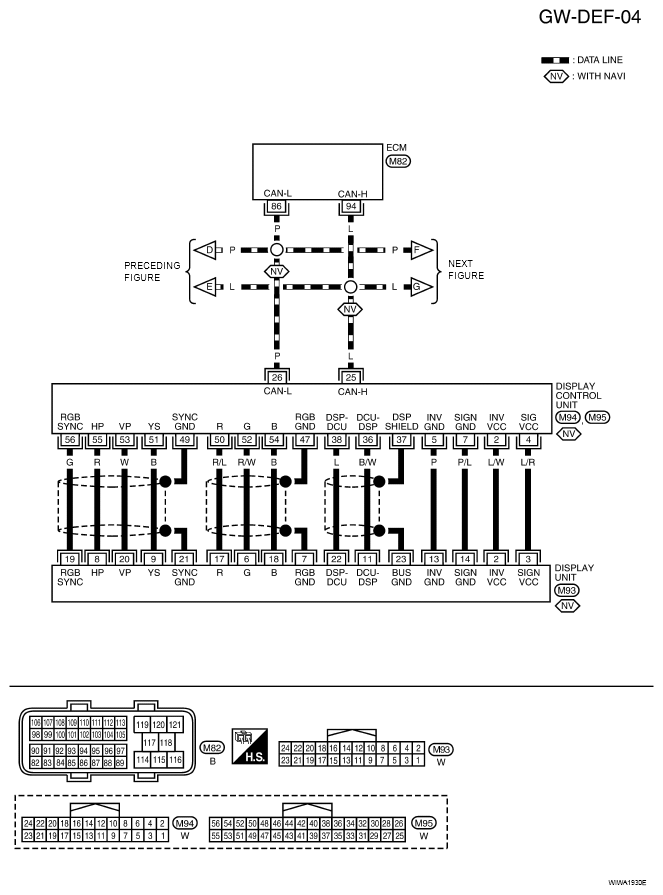

Fig 4: Wiring Diagram -GW-DEF-04

Courtesy of NISSAN MOTOR CO., U.S.A.

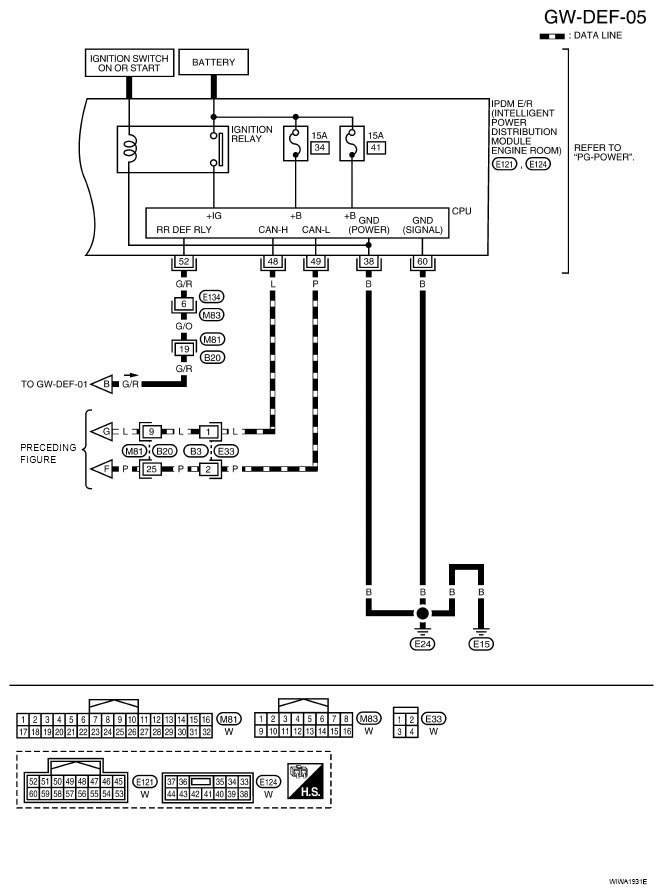

Fig 5: Wiring Diagram -GW-DEF-05

Courtesy of NISSAN MOTOR CO., U.S.A.
