Wiring Diagram - WINDOW - (With Front and Rear Power Window Anti-pinch System)

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

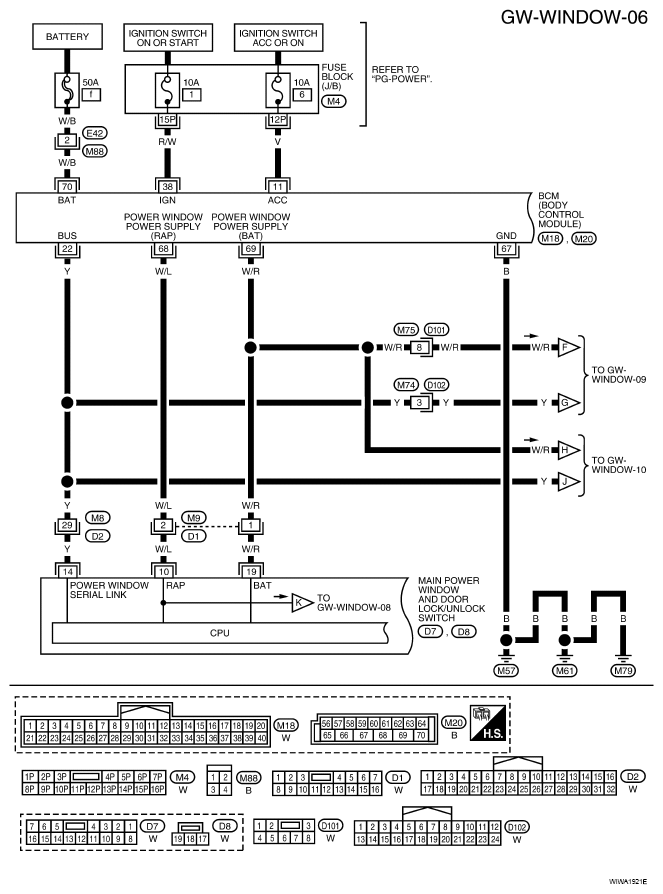

Fig 1: Wiring Diagram - GW-WINDOW-06

Courtesy of NISSAN MOTOR CO., U.S.A.

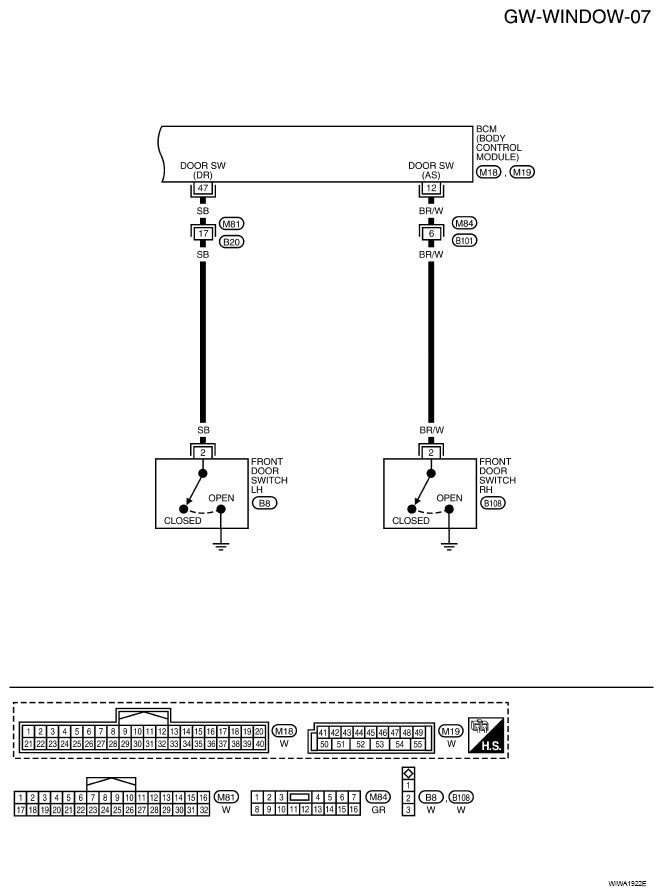

Fig 2: Wiring Diagram - GW-WINDOW-07

Courtesy of NISSAN MOTOR CO., U.S.A.

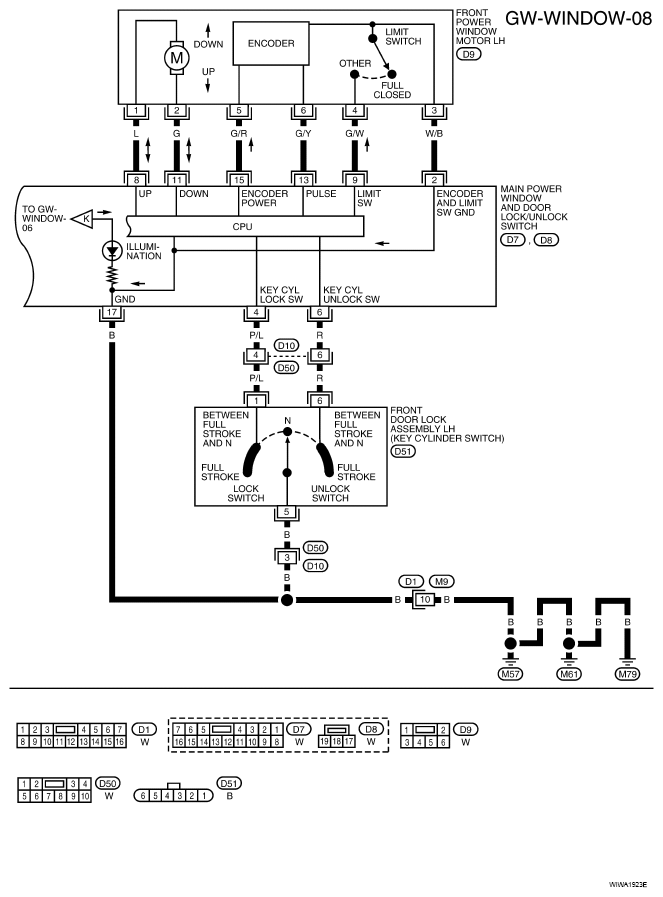

Fig 3: Wiring Diagram - GW-WINDOW-08

Courtesy of NISSAN MOTOR CO., U.S.A.

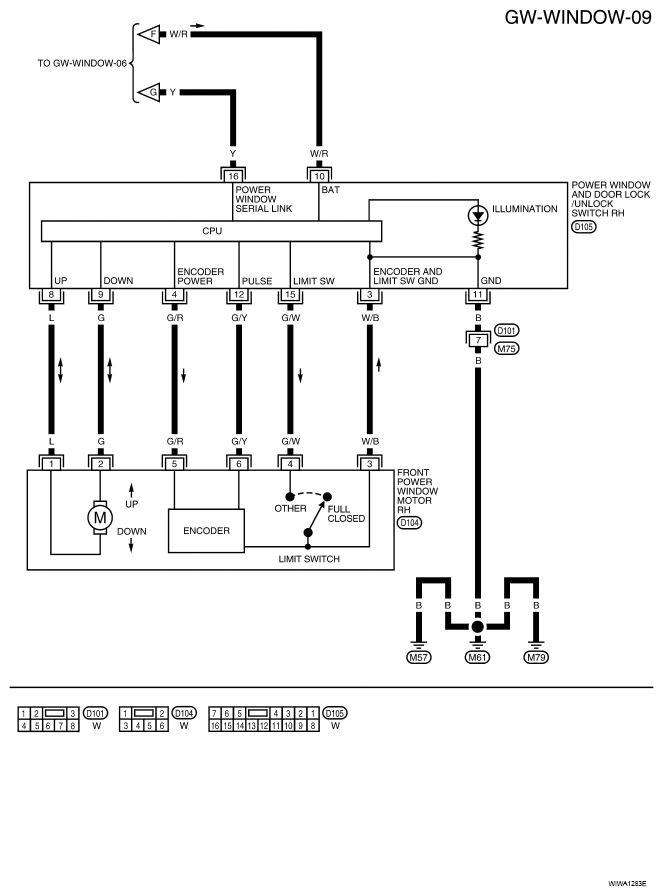

Fig 4: Wiring Diagram - GW-WINDOW-09

Courtesy of NISSAN MOTOR CO., U.S.A.

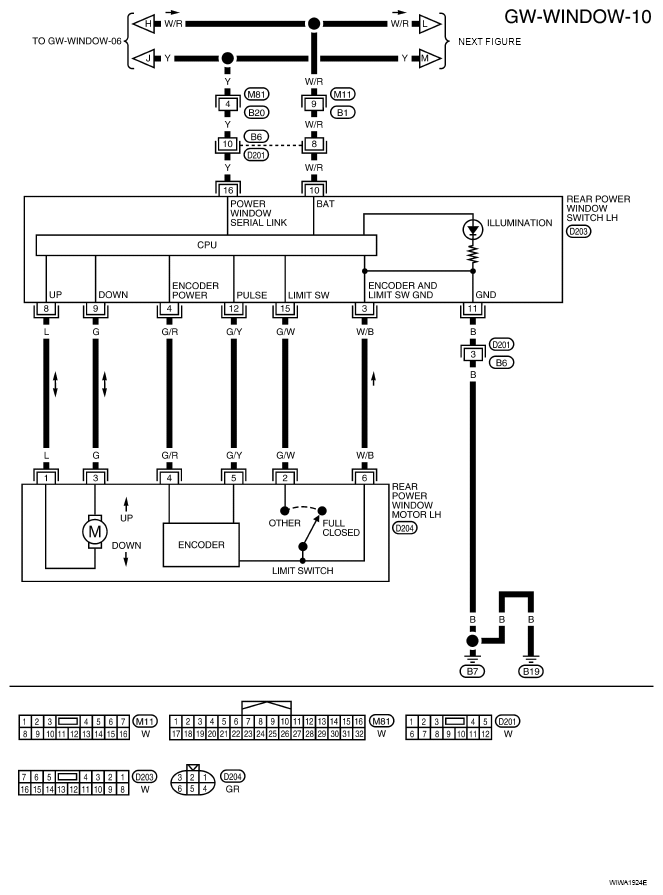

Fig 5: Wiring Diagram - GW-WINDOW-10

Courtesy of NISSAN MOTOR CO., U.S.A.

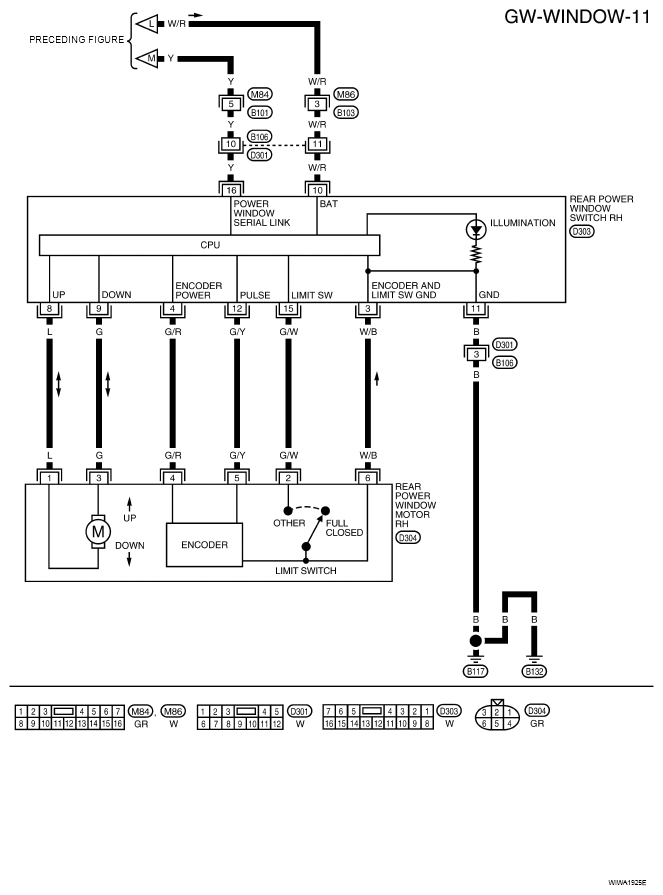

Fig 6: Wiring Diagram - GW-WINDOW-11

Courtesy of NISSAN MOTOR CO., U.S.A.
