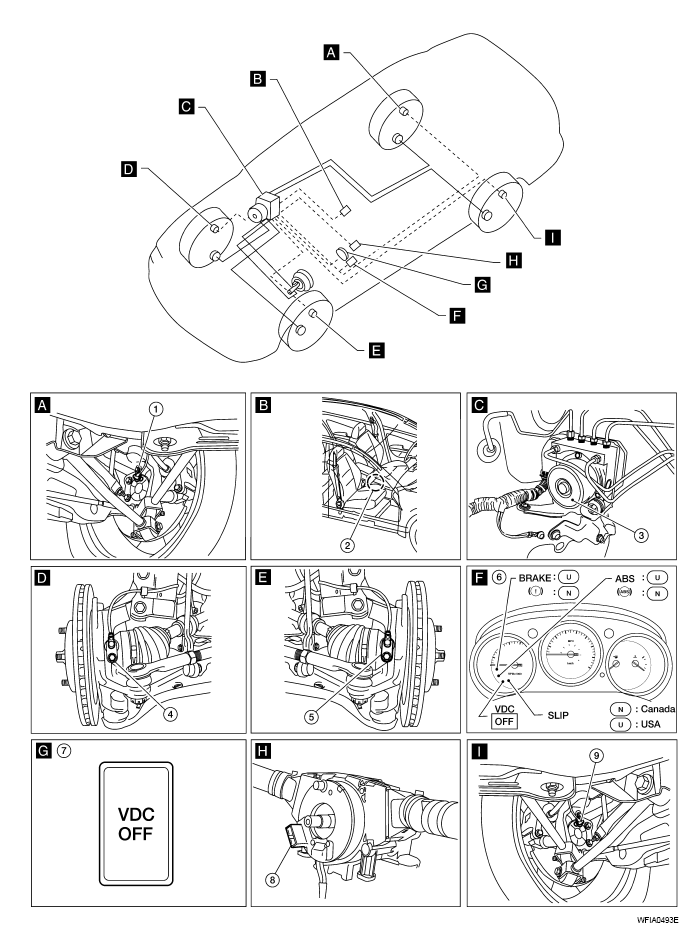

Component Parts and Harness Connector Location
WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
| 1. Rear wheel sensor RH B122 2. Yaw rate/side/decel G sensor M46 3. ABS actuator and electric unit (control unit) E125 (engine removed for clarity) 4. Front wheel sensor RH E117 5. Front wheel sensor LH E18 6. Combination meter M24 7. VDC OFF switch M6 8. Steering angle sensor M47 (steering wheel removed for clarity) 9. Rear wheel sensor LH B123 |
||
