Removal and Installation of Trunk Lid Weatherstrip

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

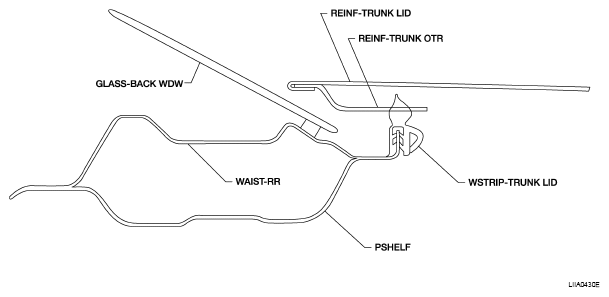

Fig 1: Identifying Trunk Lid Waist-RR, Glass-Back WDW And REINF-Trunk Lid
G04916915Courtesy of NISSAN MOTOR CO., U.S.A.
  1. At rear side, align the weatherstrip seam to the center of the striker.
  2. After installing, pull the weatherstrip lightly to check for looseness.
    CAUTION: The weatherstrip should fit tightly onto the corners and trunk lid rear plate.
