Removal and Installation (Secondary Timing Chain Tensioner Shoe): Removal

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing chains (secondary). Refer to Removal
  2. Remove the secondary timing chain tensioner shoe by evenly prying at base of shoe with suitable tool as shown.

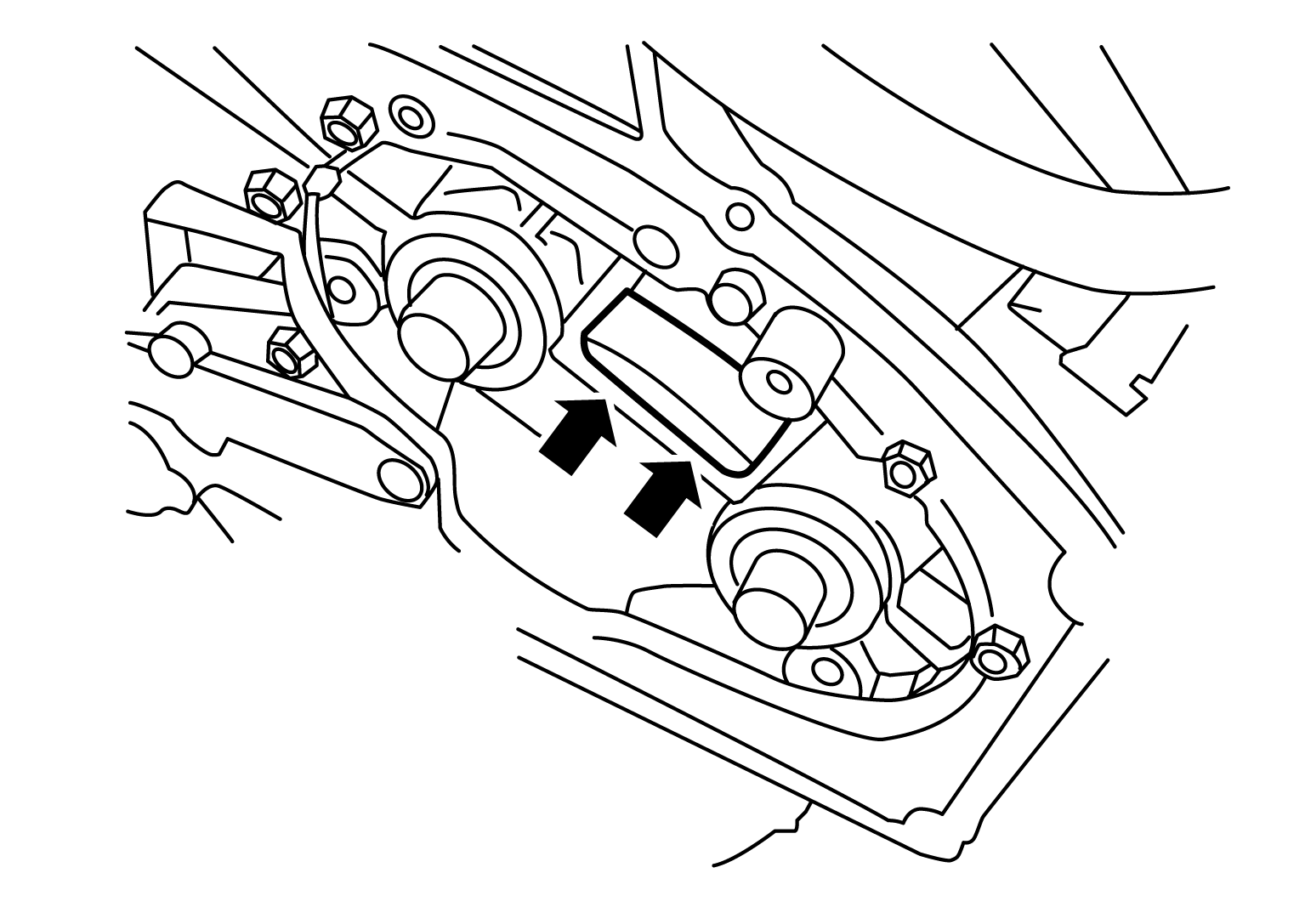

    3. Fig 1: Identifying Secondary Timing Chain Tensioner Shoe
    G07118002Courtesy of NISSAN MOTOR CO., U.S.A.
