Wiring Diagram - CAN -

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

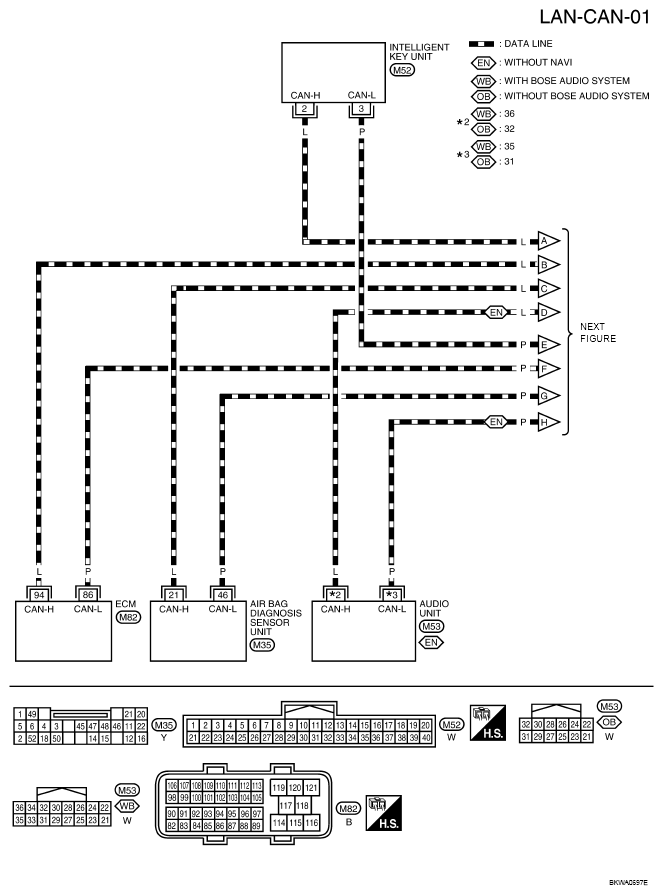

Fig 1: Wiring Diagram - LAN-CAN-01

Courtesy of NISSAN MOTOR CO., U.S.A.

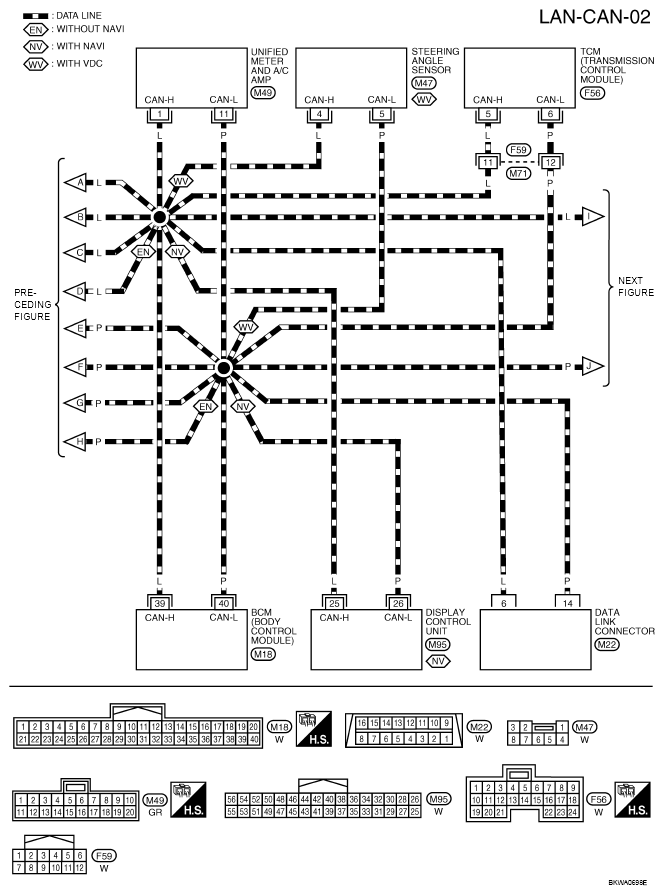

Fig 2: Wiring Diagram - LAN-CAN-02

Courtesy of NISSAN MOTOR CO., U.S.A.

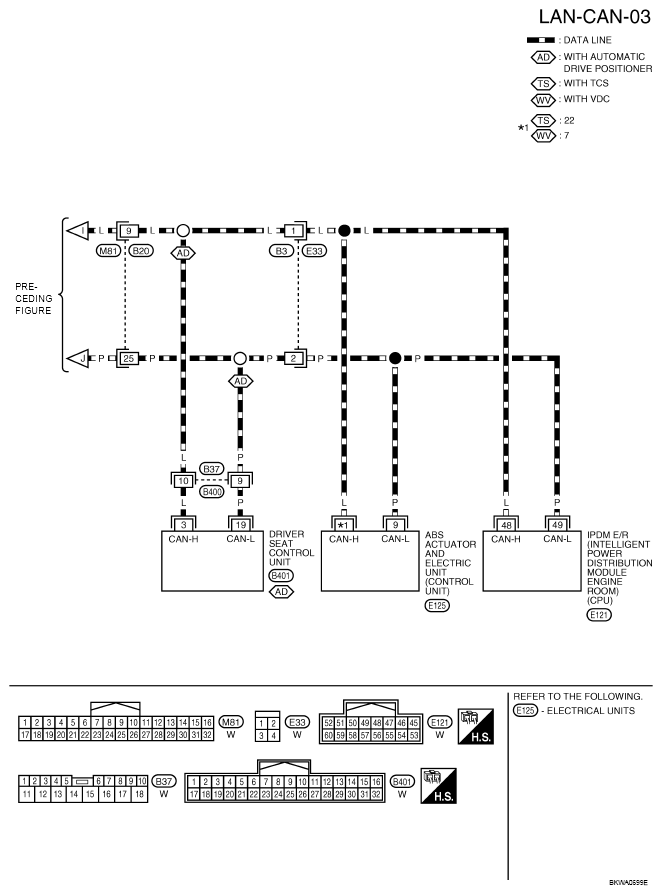

Fig 3: Wiring Diagram - LAN-CAN-03

Courtesy of NISSAN MOTOR CO., U.S.A.
