Performance Test Diagnoses

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

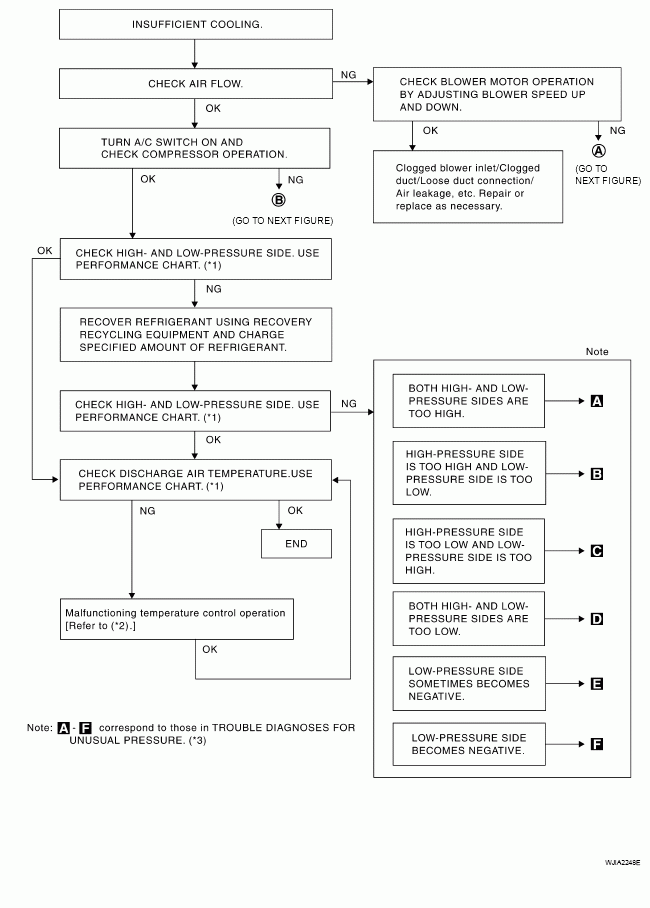

Fig 1: Performance Test Diagnoses Flow Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: PERFORMANCE CHART

*2: Air Mix Door Motor Circuit

*3: TROUBLE DIAGNOSES FOR UNUSUAL PRESSURE

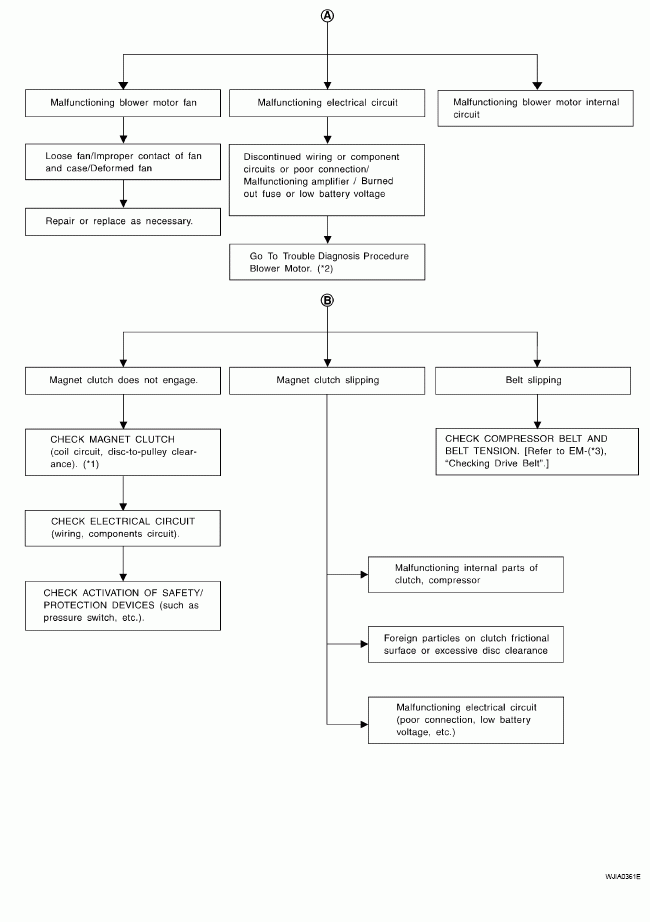

Fig 2: Performance Test Diagnoses Flow Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: Removal and Installation for Compressor Clutch

*2: Blower Motor Circuit

*3: CHECKING DRIVE BELTS
