Auxiliary Mechanism: Defrost/Foot Position Setting Trimmer
WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

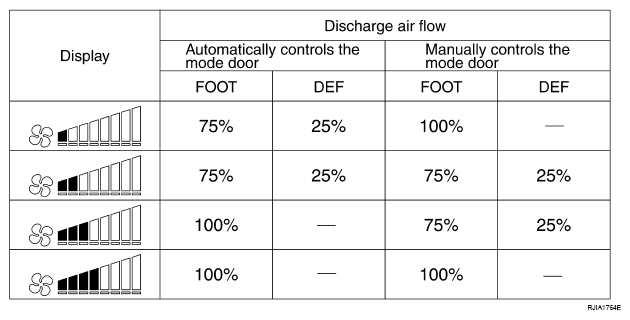

Air distribution ratio in FOOT mode can be set.
Operating procedures for this trimmer are as follows:
- Begin Self-diagnosis STEP 5 mode. Refer to "A/C SYSTEM SELF-DIAGNOSIS FUNCTION ".
- Press top of blower control switch to set system in auxiliary mode.
- Display initially shows 61 in auxiliary mechanism. It takes approximately 3 seconds to display the temperature trimmer value.
- Press the mode switch as desired.
