Floor Duct: Removal

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the carpet. Refer to "FLOOR TRIM ".
  2. Remove the two clips.
  3. Remove the floor ducts.

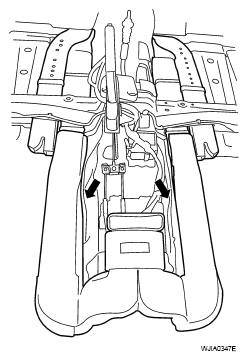

    Fig 1: Locating Clips On Floor Ducts
    G04917669Courtesy of NISSAN MOTOR CO., U.S.A.
