Wiring Diagram - CVT - NONDTC

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

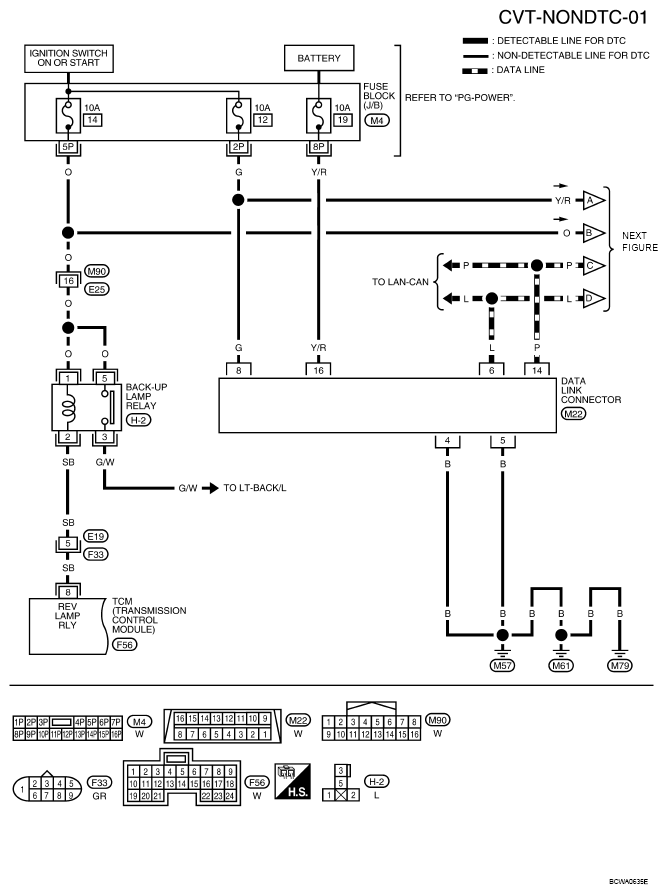

Fig 1: Wiring Diagram - CVT-NONDTC-01

Courtesy of NISSAN MOTOR CO., U.S.A.

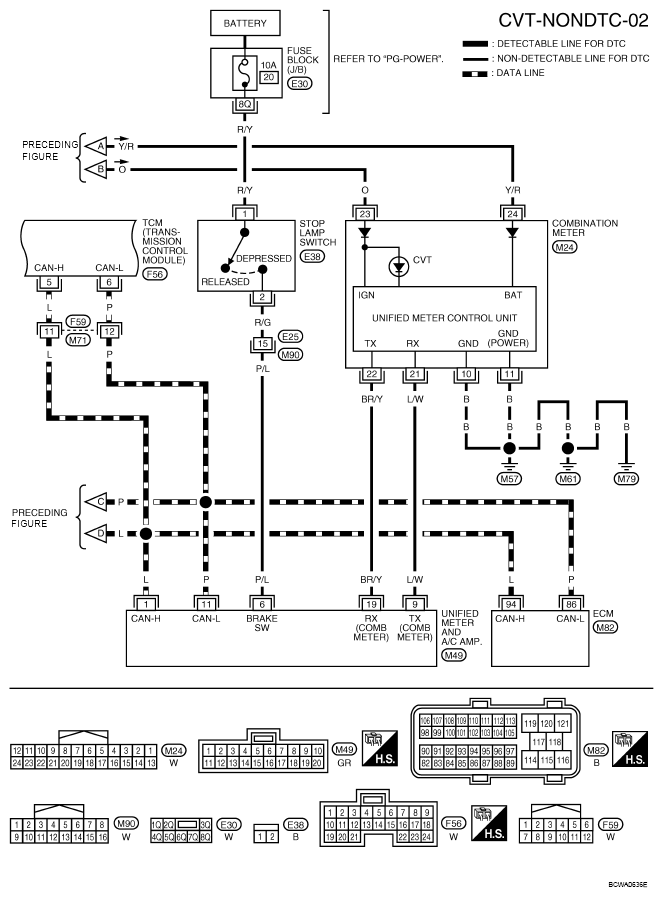

Fig 2: Wiring Diagram - CVT-NONDTC-02

Courtesy of NISSAN MOTOR CO., U.S.A.

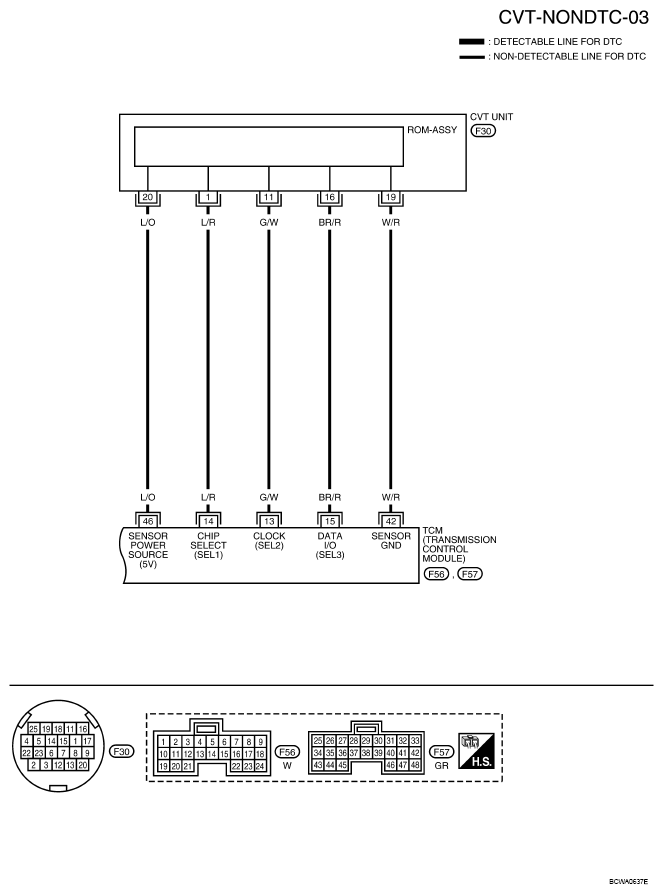

Fig 3: Wiring Diagram - CVT-NONDTC-03

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminal data are reference values, measured between each terminal and ground.

TCM TERMINAL DATA REFERENCE VALUES

Terminal	Wire color	Item	Condition		Data (Approx.)
5	L	CAN-H	--		--
6	P	CAN-L	--		--
8	SB	Back-up lamp relay	Courtesy of NISSAN MOTOR CO., U.S.A.	Selector lever in "R" position.	0V
8	SB	Back-up lamp relay	Courtesy of NISSAN MOTOR CO., U.S.A.	Selector lever in other positions.	Battery voltage
13	G/W	ROM assembly	-		-
14	/R	ROM assembly	-		-
15	BR/R	ROM assembly	-		-
42	W/R	Sensor ground	Always		0V
46	L/O	Sensor power	Courtesy of NISSAN MOTOR CO., U.S.A.	-	5.0 V
46	L/O	Sensor power	Courtesy of NISSAN MOTOR CO., U.S.A.	-	0V
