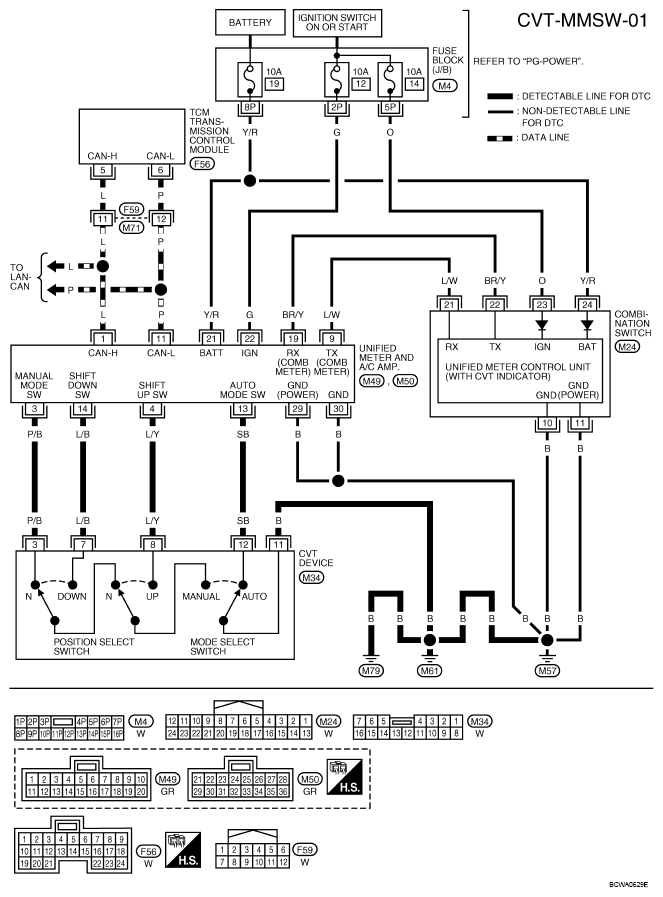

Wiring Diagram - CVT - MMSW
WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
TCM terminal data are reference values, measured between each terminal and ground.
TCM TERMINAL DATA REFERENCE VALUES
| Terminal | Wire color | Item | Condition | Data (Approx.) |
|---|---|---|---|---|
| 5 | L | CAN-H | - | - |
| 6 | P | CAN-L | - | - |
