Wiring Diagram - CVT - SECPSV

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

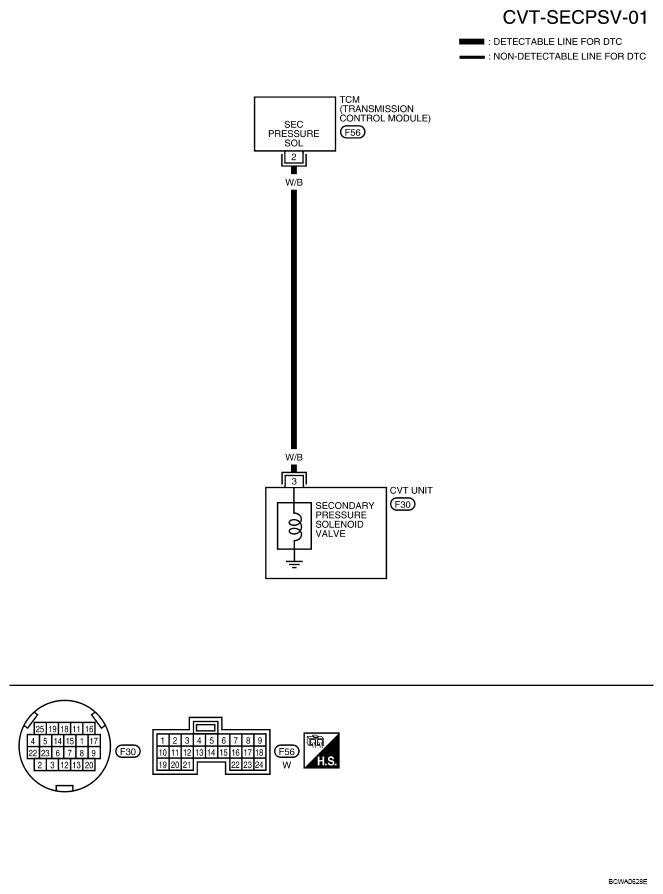

Fig 1: Wiring Diagram - CVT-SECPSV-01

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminal data are reference values, measured between each terminal and ground.

TCM TERMINAL DATA REFERENCE VALUES

Terminal	Wire color	Item	Condition		Data (Approx.)
2	W/B	Pressure control solenoid valve B (Secondary pressure solenoid valve)	Courtesy of NISSAN MOTOR CO., U.S.A.	Release your foot from the accelerator pedal.	5.0 - 7.0 V
2	W/B		Courtesy of NISSAN MOTOR CO., U.S.A.	Press the accelerator pedal all the way down.	3.0 - 4.0 V
