Spiral Cable

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Set front wheels in straight-ahead position. Rotate spiral cable fully clockwise until resistance is felt. DO NOT over tighten. Rotate spiral cable counterclockwise about 2.5 turns and align White pin with arrow on spiral cable. See Fig 1 .

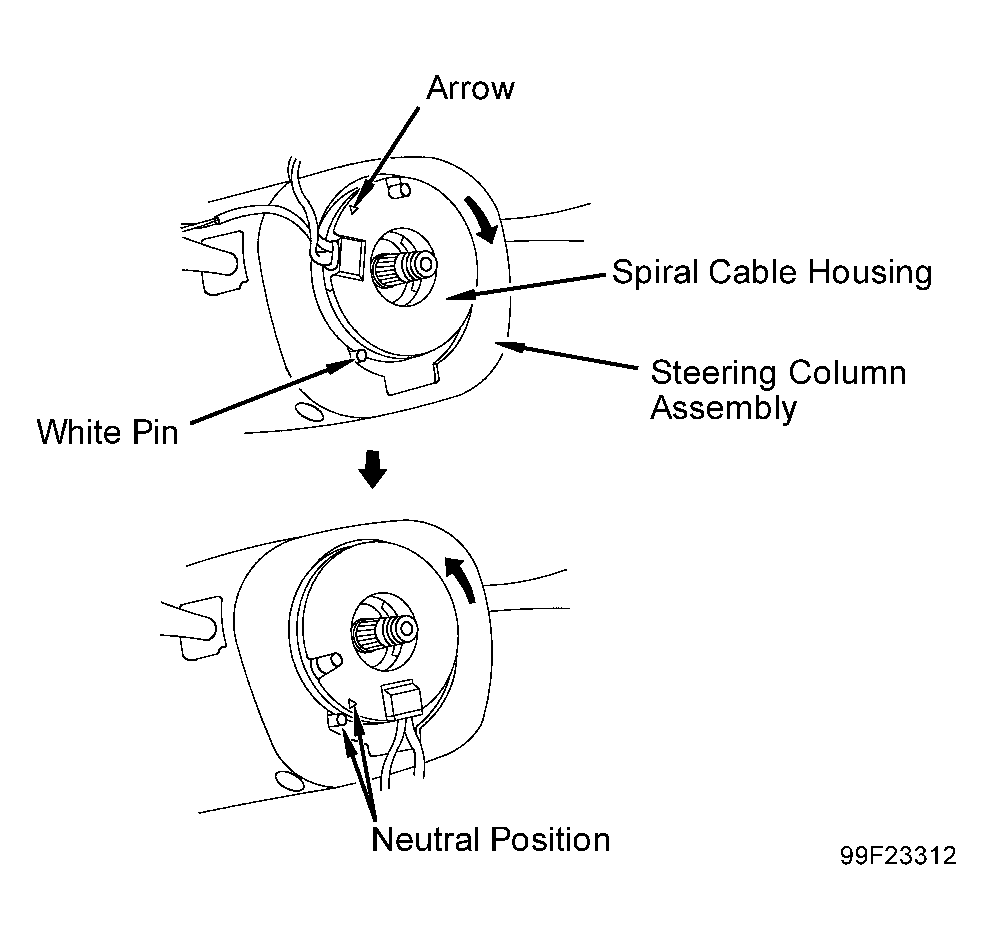

Fig 1: Aligning Spiral Cable
G99F23312Courtesy of NISSAN MOTOR CO., U.S.A.
