Drain Hoses: Removal

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

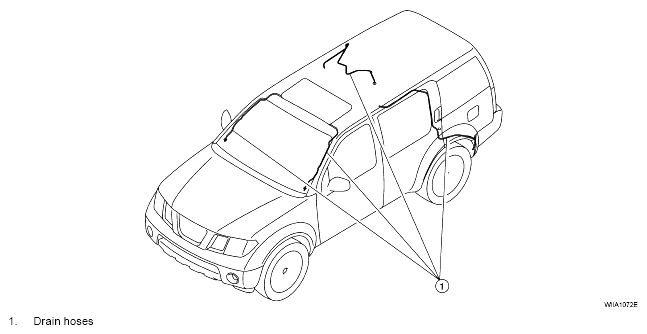

Fig 1: Identifying Drain Hoses

Remove the headlining. Refer to "REMOVAL AND INSTALLATION ".

Fig 2: View Of Drain Hose Locations
Visually check the drain hoses for proper connections, damage or deterioration.
Remove each drain hose and check visually for damage, cracks or deterioration.
Pour water through the drain hose to check for damage.
- If any damage is found, replace the drain hose.
