Wiring Diagram - WIPER -

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER

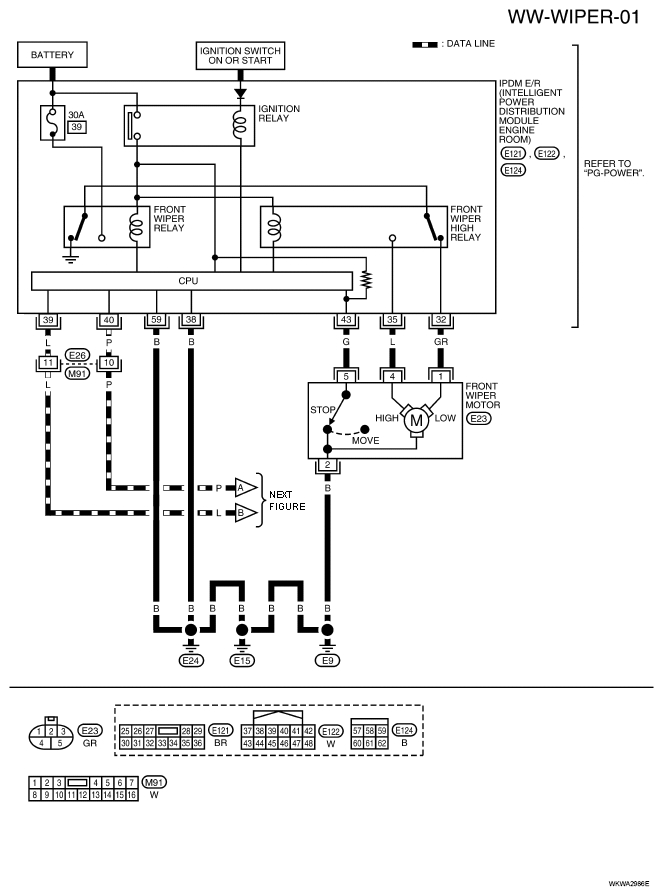

Fig 1: Identifying Wiring Diagram - WW-WIPER-01
G04913965

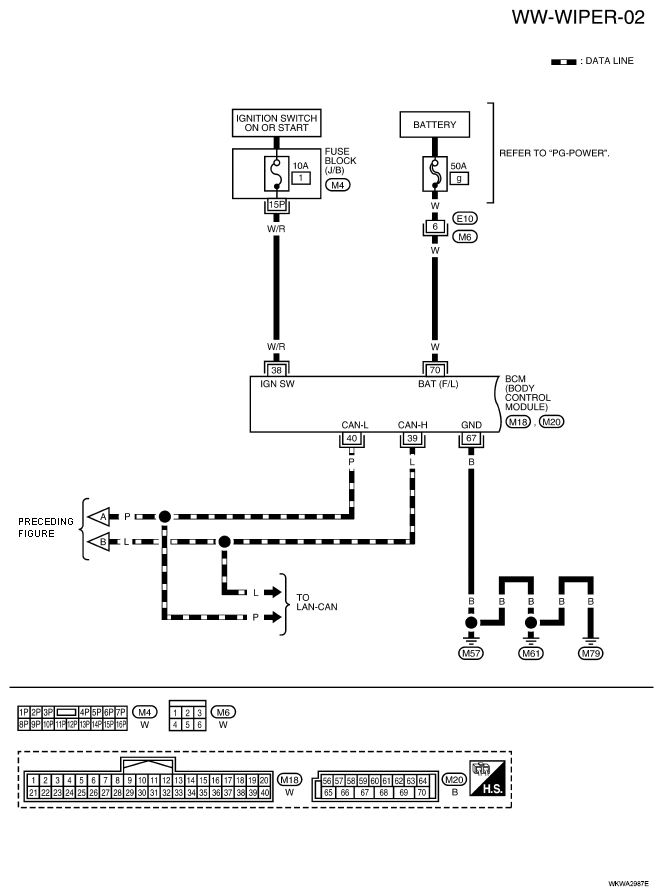

Fig 2: Identifying Wiring Diagram - WW-WIPER-02
G04913966

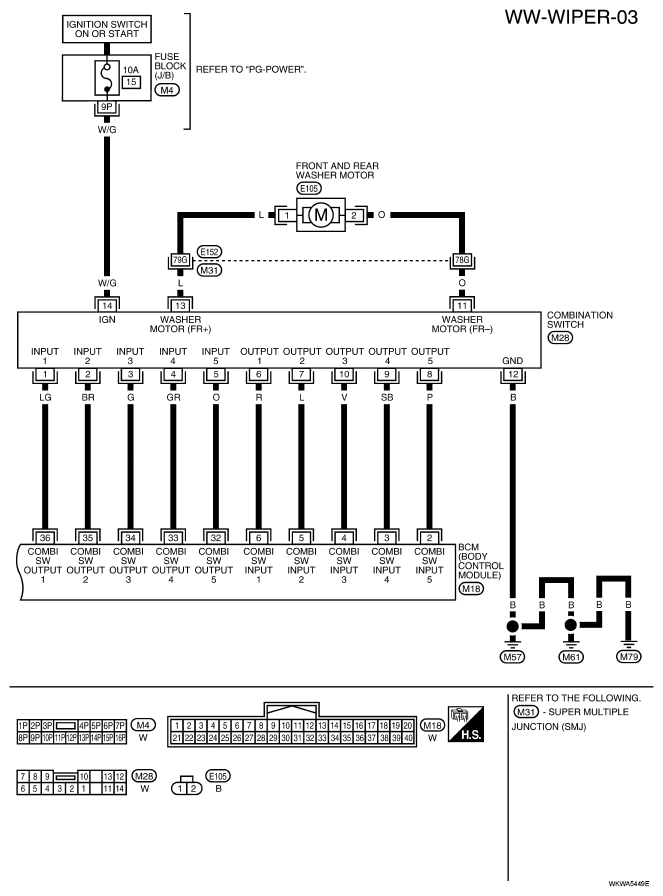

Fig 3: Identifying Wiring Diagram - WW-WIPER-03
G04913967
