Washer Fluid Reservoir: Removal

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove passenger front fender protector. Refer to. "REMOVAL AND INSTALLATION OF FRONT FENDER PROTECTOR ".
  2. Remove clip, then remove washer fluid reservoir filler neck from washer fluid reservoir.
    Fig 1: Locating Washer Fluid Reservoir Filler Neck
    G04896629
  3. Disconnect front and rear washer hoses.
  4. Disconnect front and rear washer motor connector.
  5. Disconnect washer fluid level sensor connector.

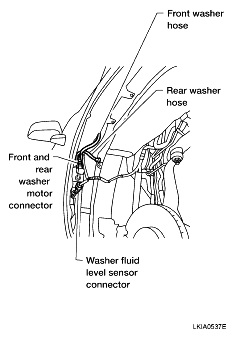

    Fig 2: Identifying Washer Fluid Level Sensor Connector
    G04896630
  6. Remove washer fluid reservoir screws and remove washer fluid reservoir.
    Fig 3: Locating Washer Fluid Reservoir Screws
    G04896631
