Wiring Diagram - AUT/DP -

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER

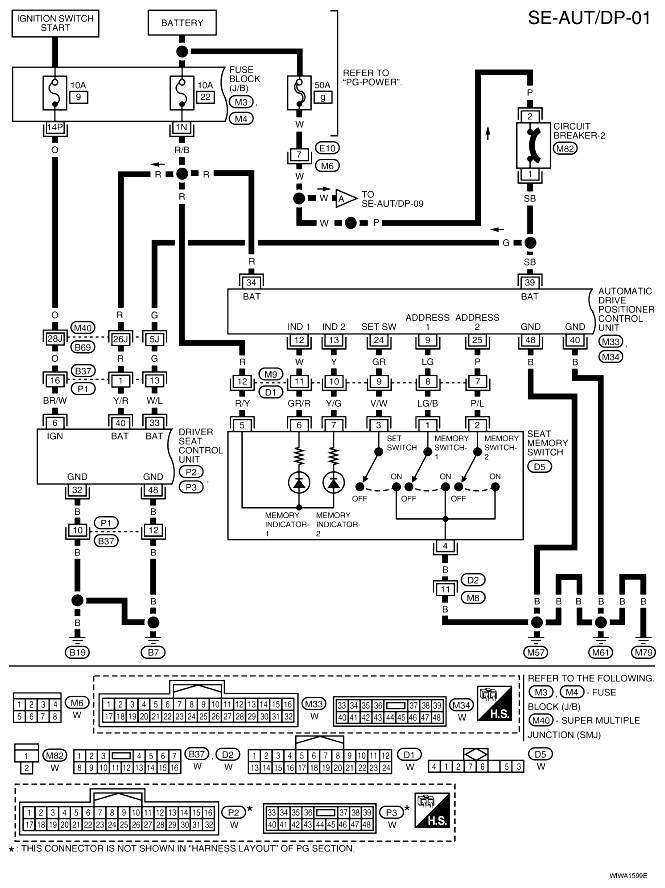

Fig 1: Identifying Wiring Diagram - SE-AUT/DP-01

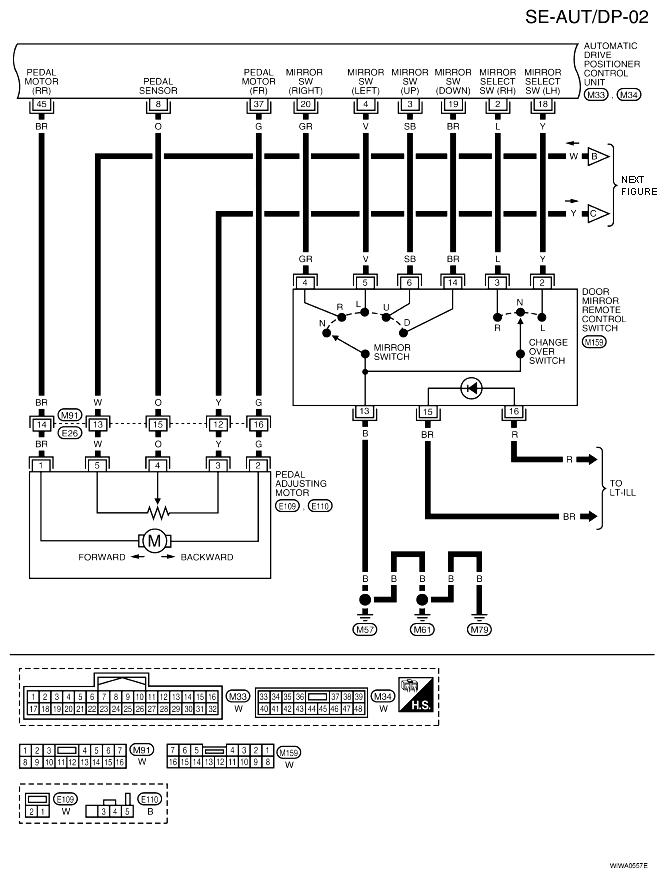

Fig 2: Identifying SE-AUT/DP-02 - Wiring Diagram

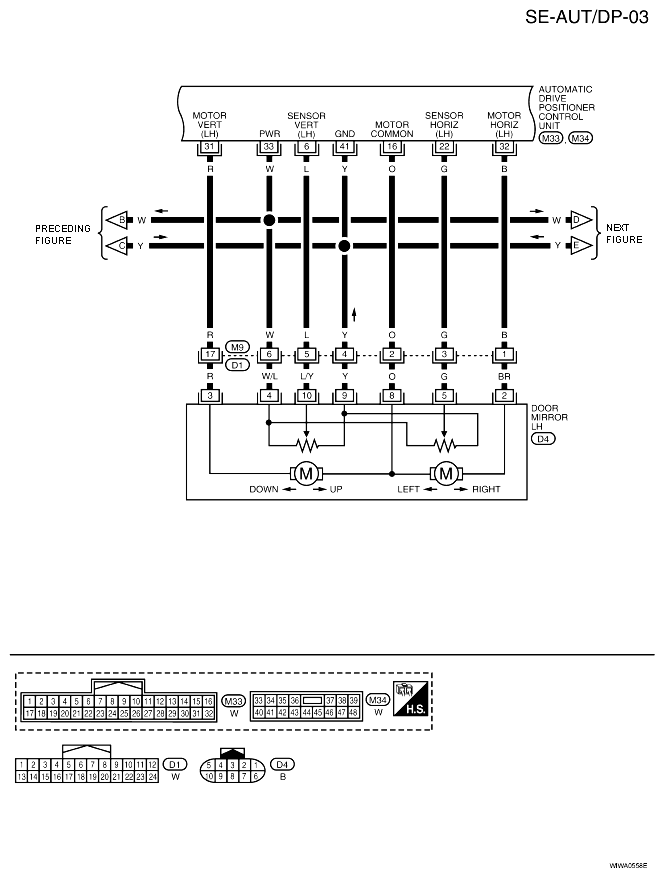

Fig 3: Identifying Wiring Diagram - SE-AUT/DP-03

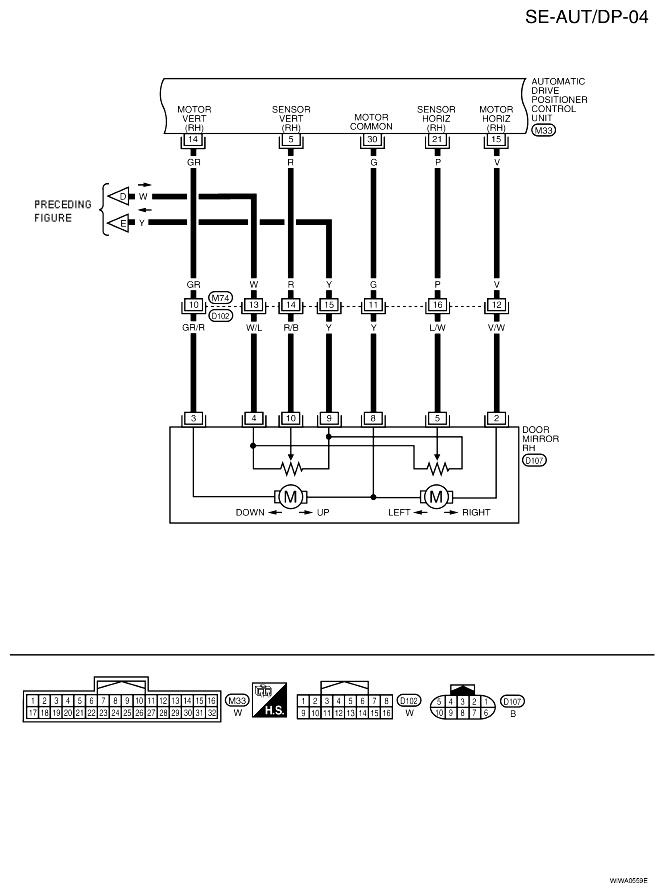

Fig 4: Identifying Wiring Diagram - SE-AUT/DP-04

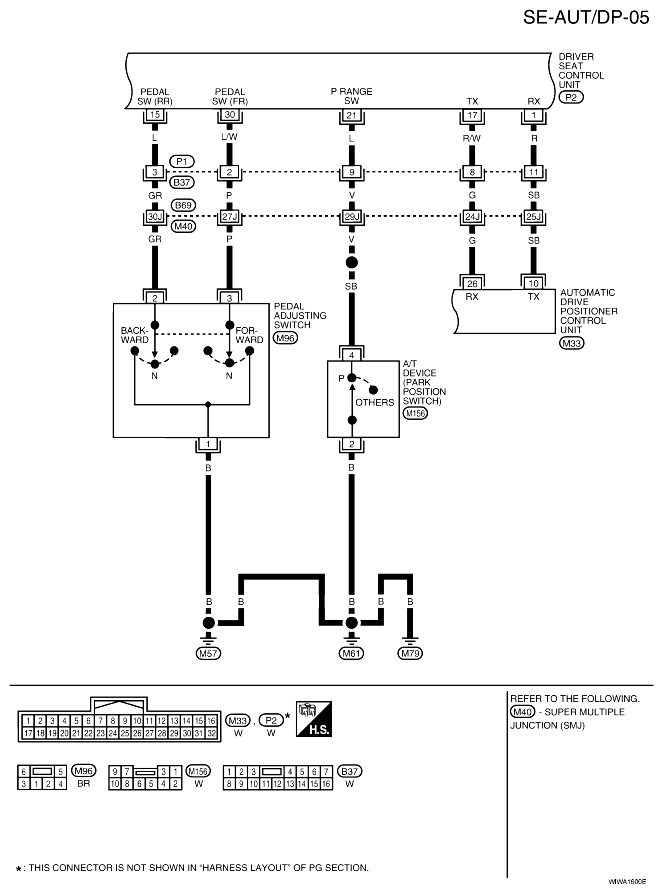

Fig 5: Identifying Wiring Diagram - SE-AUT/DP-05

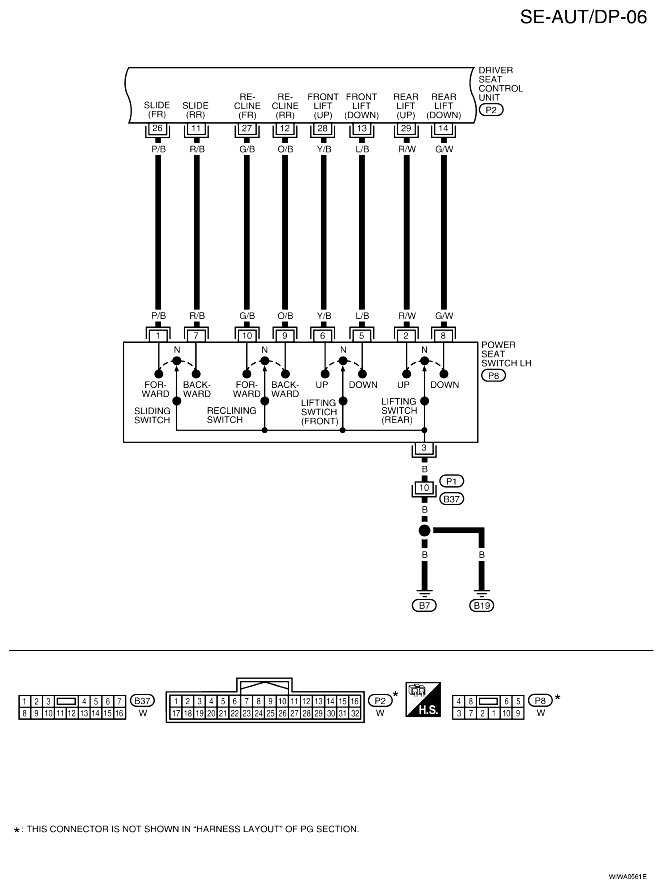

Fig 6: Identifying Wiring Diagram - SE-AUT/DP-06

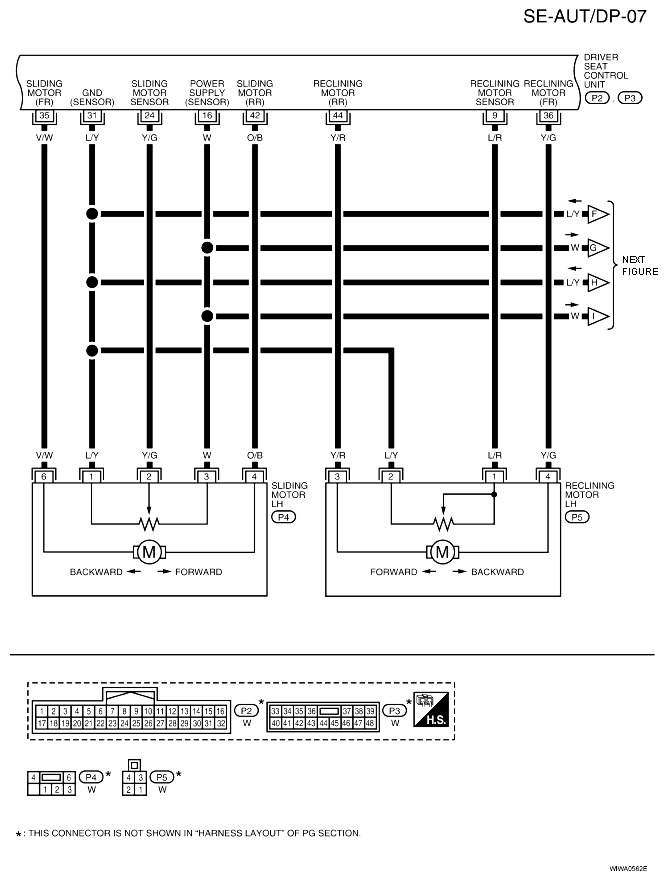

Fig 7: Identifying Wiring Diagram - SE-AUT/DP-07

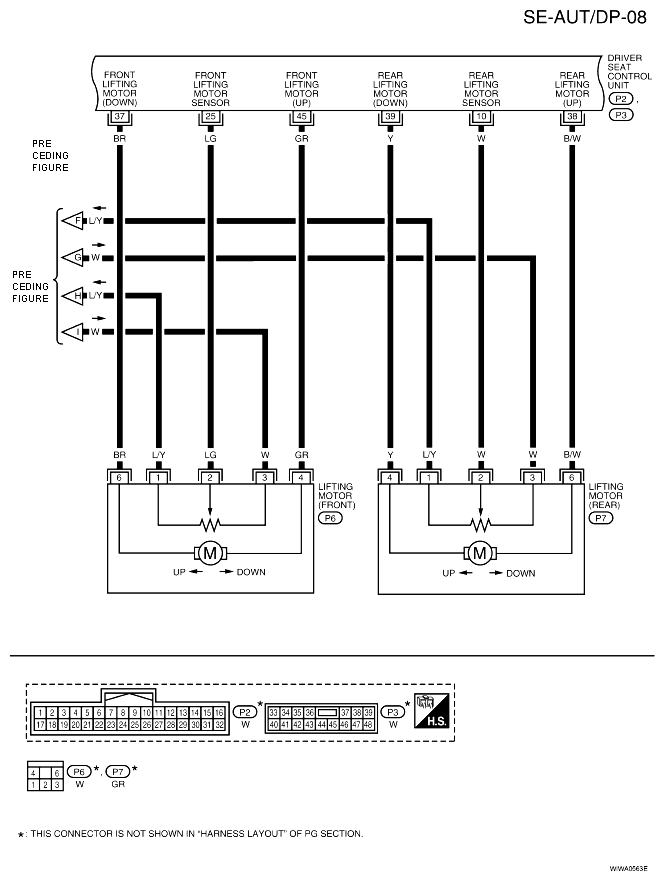

Fig 8: Identifying Wiring Diagram - SE-AUT/DP-08

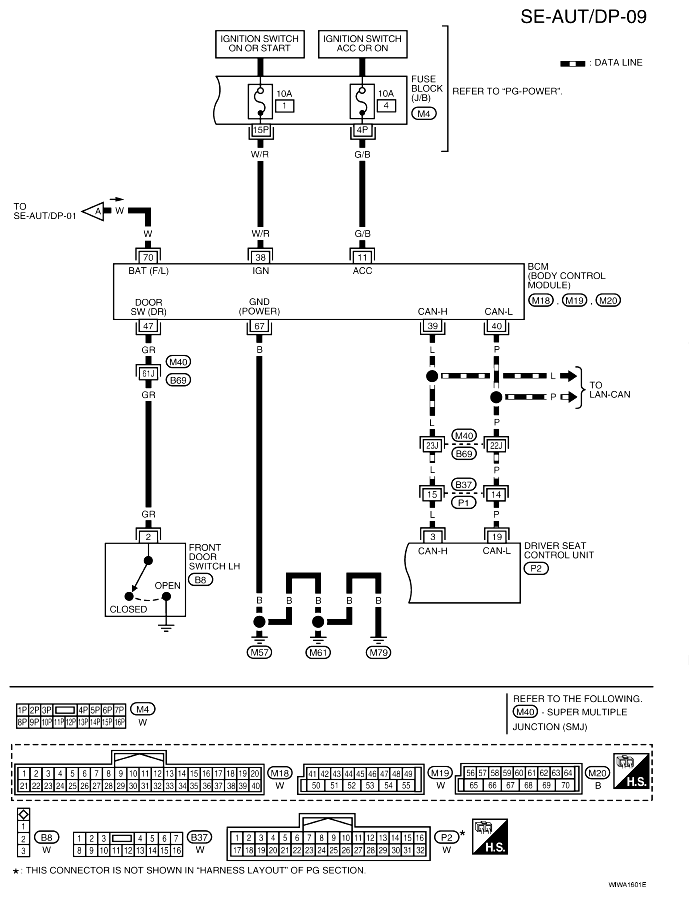

Fig 9: Identifying Wiring Diagram - SE-AUT/DP-09
