Wiring Diagram - SRS -

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER

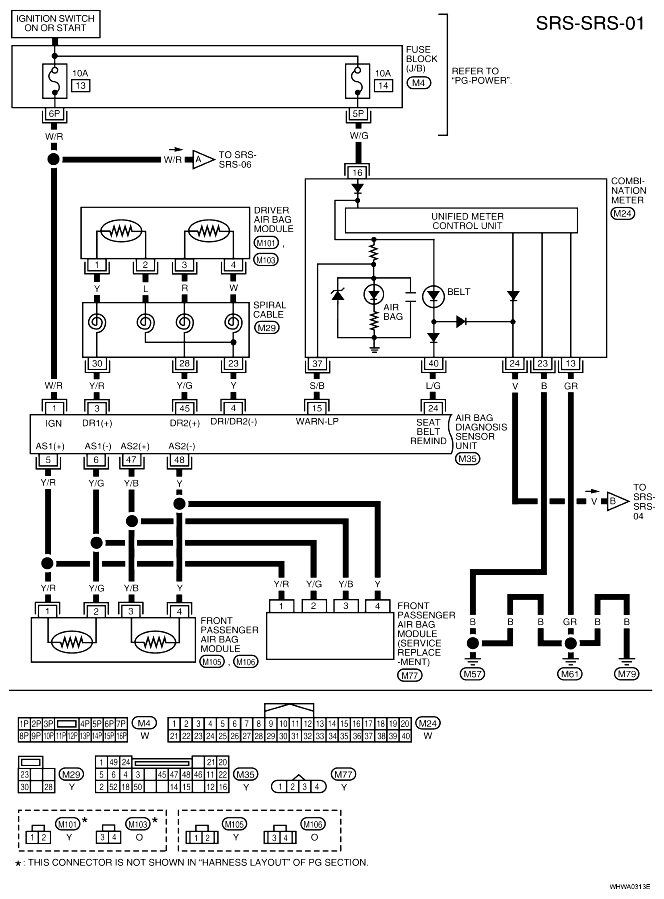

Fig 1: Identifying Wiring Diagram - SRS-SRS-01

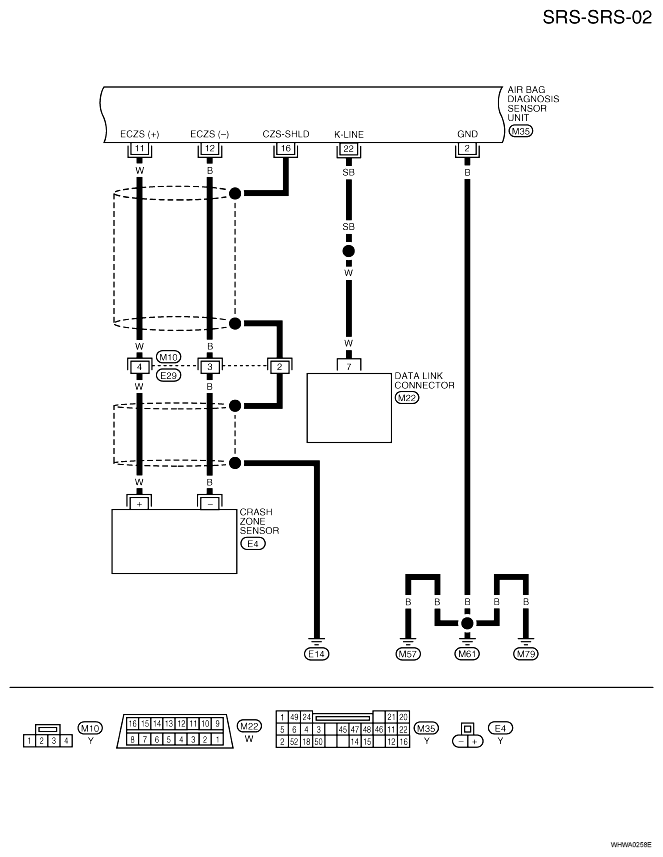

Fig 2: Identifying Wiring Diagram - SRS-SRS-02

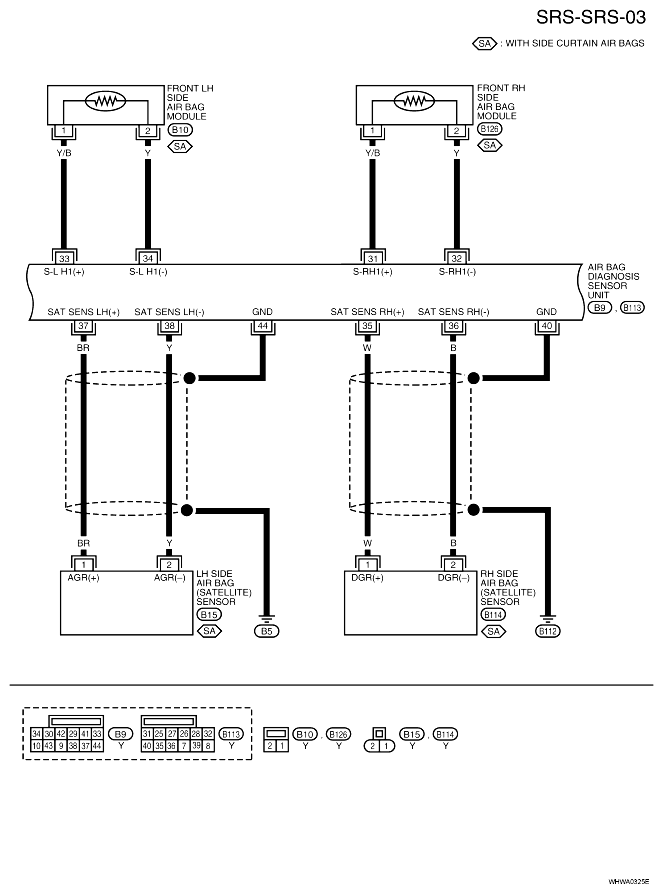

Fig 3: Identifying Wiring Diagram - SRS-SRS-03

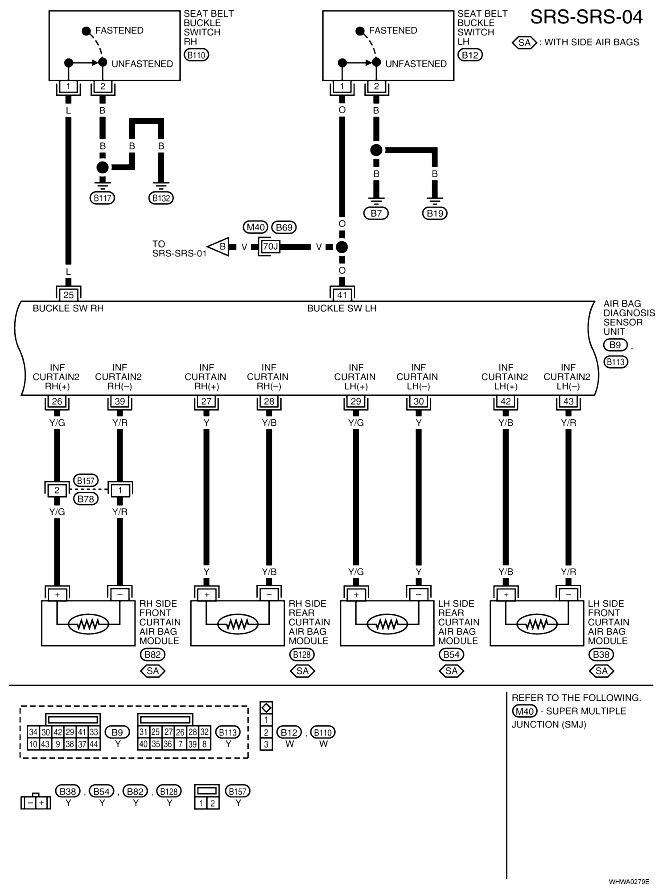

Fig 4: Identifying Wiring Diagram - SRS-SRS-04

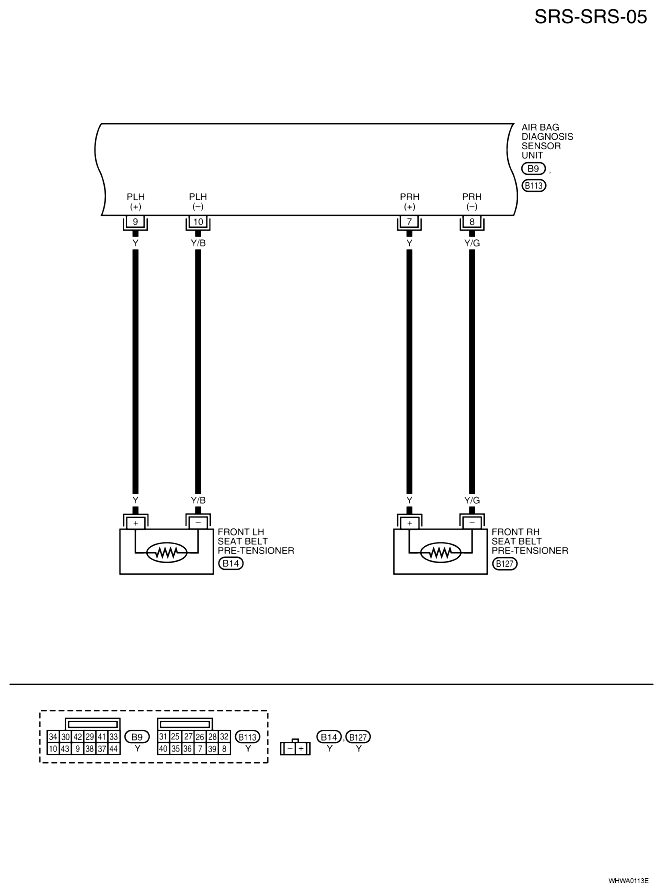

Fig 5: Identifying Wiring Diagram - SRS-SRS-05

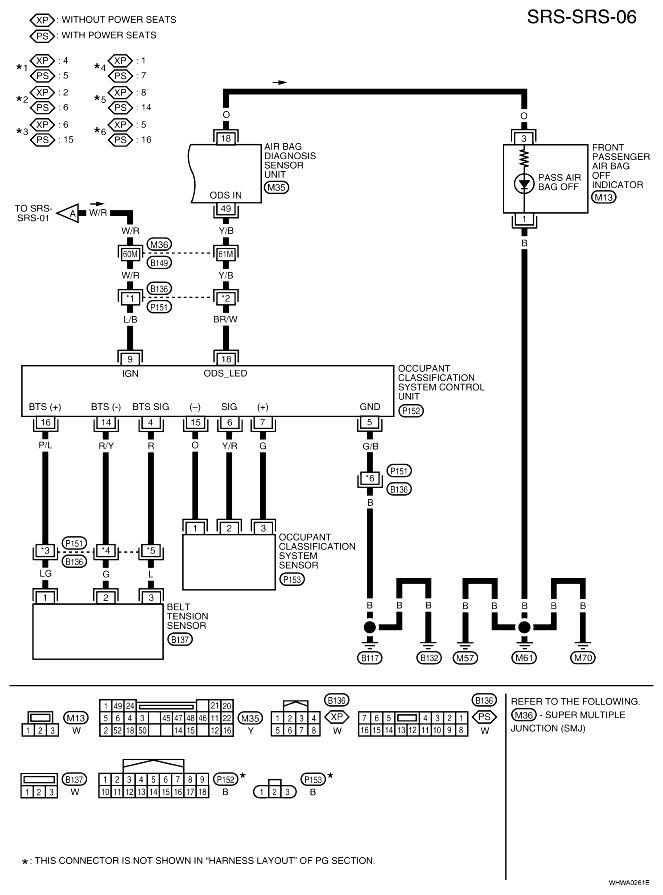

Fig 6: Identifying Wiring Diagram - SRS-SRS-06
