Work Flow

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

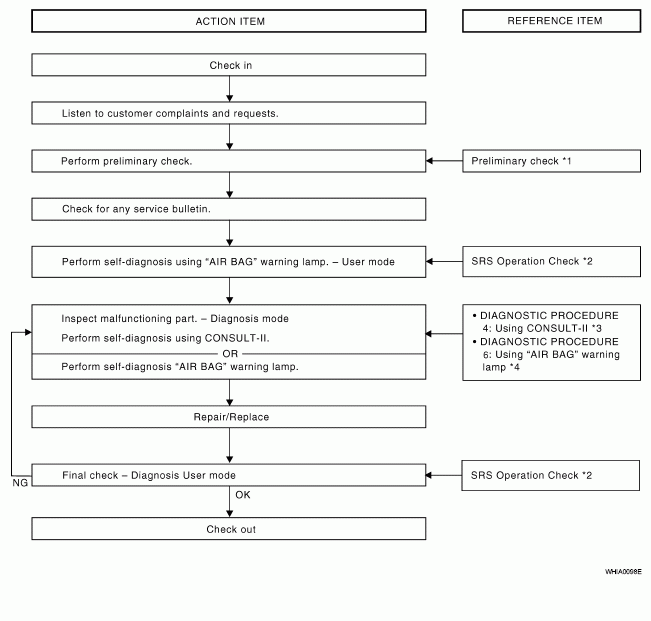

Fig 1: Identifying Diagnosis Work Flow
G04912611
*1 Preliminary Check
*2 SRS Operation Check
*3DIAGNOSTIC PROCEDURE 4
*4 DIAGNOSTIC PROCEDURE 6
