GPS Antenna: Removal

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower instrument panel RH. Refer to "LOWER INSTRUMENT PANEL RH AND LOWER GLOVE BOX ".
  2. Remove cluster lid C. Refer to "CLUSTER LID C - WITHOUT NAVIGATION SYSTEM ".
  3. Reach through instrument panel and disconnect the GPS antenna connector.
  4. Remove the GPS antenna screws.

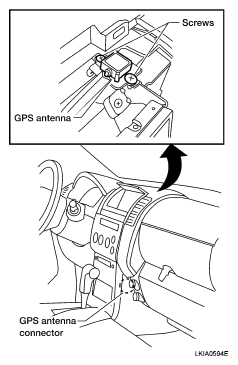

    Fig 1: Identifying GPS Antenna Screws
    G04914423
  5. Remove GPS antenna and feeder assembly out the top of instrument panel.
