Video Monitor: Removal

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the clips and remove DVD video monitor finisher from headlining.
  2. Press the release tabs and remove the cover.
  3. Remove the video monitor screws.

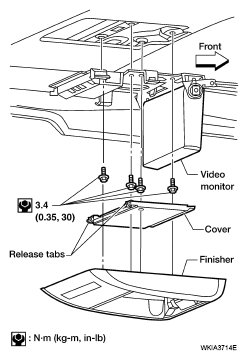

    Fig 1: Identifying Video Monitor Screws
    G04914278
  4. Gently lower the assembly and disconnect the connector, then remove the video monitor from the headlining.
