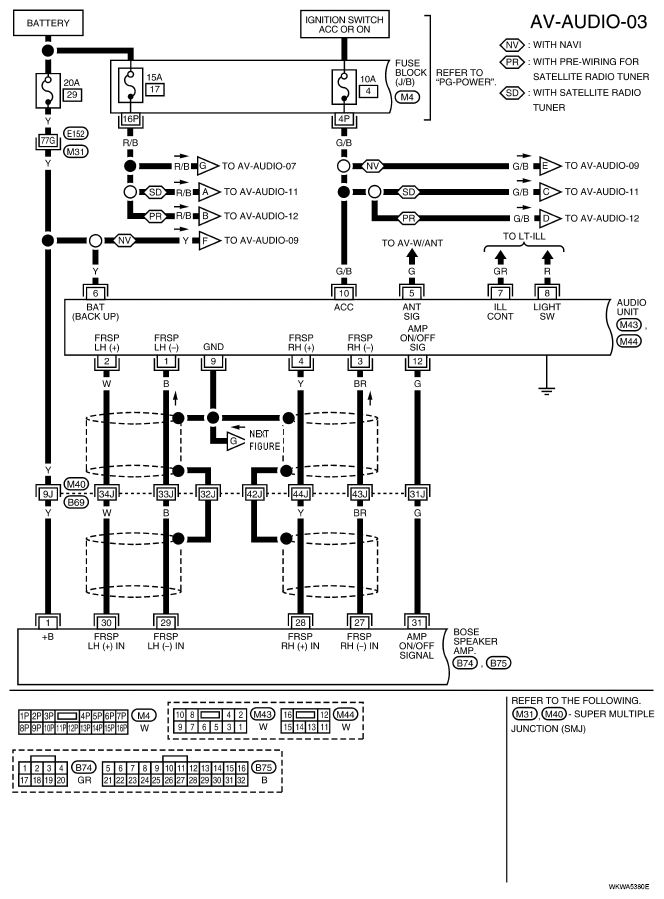

Fig 1: Identifying Bose System Wiring Diagram - AV-AUDIO-03

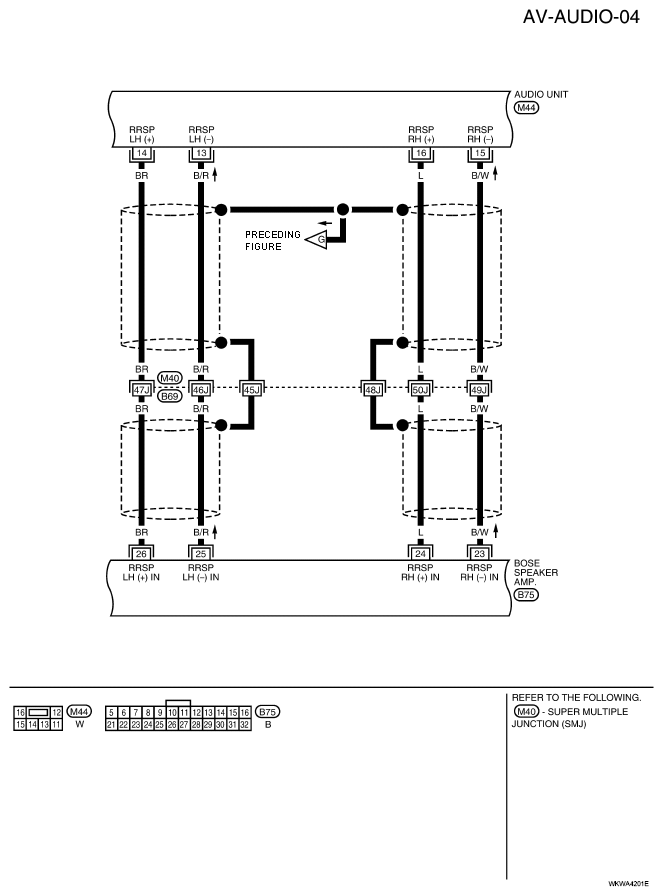

Fig 2: Identifying Bose System Wiring Diagram - AV-AUDIO-04

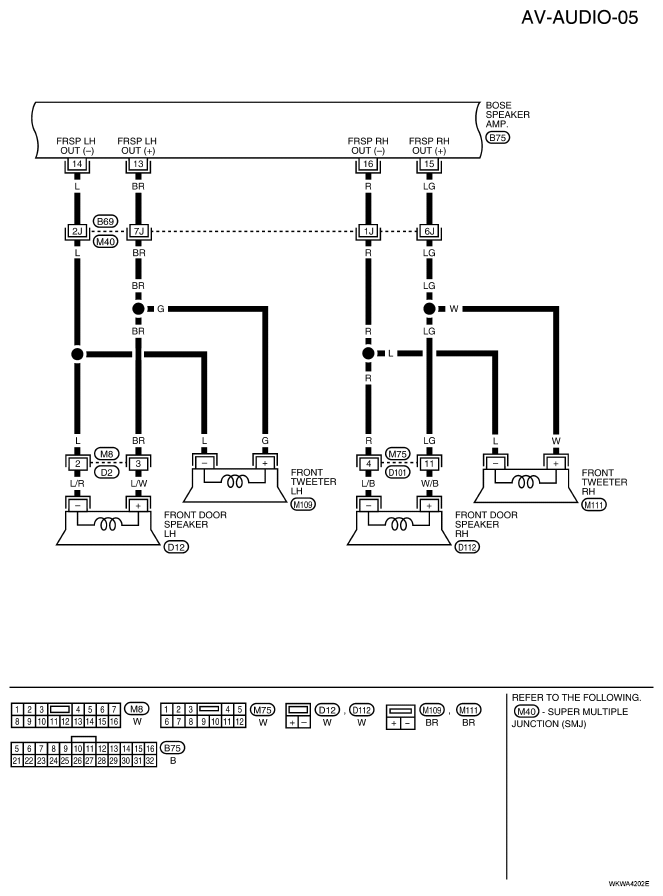

Fig 3: Identifying Bose System Wiring Diagram - AV-AUDIO-05

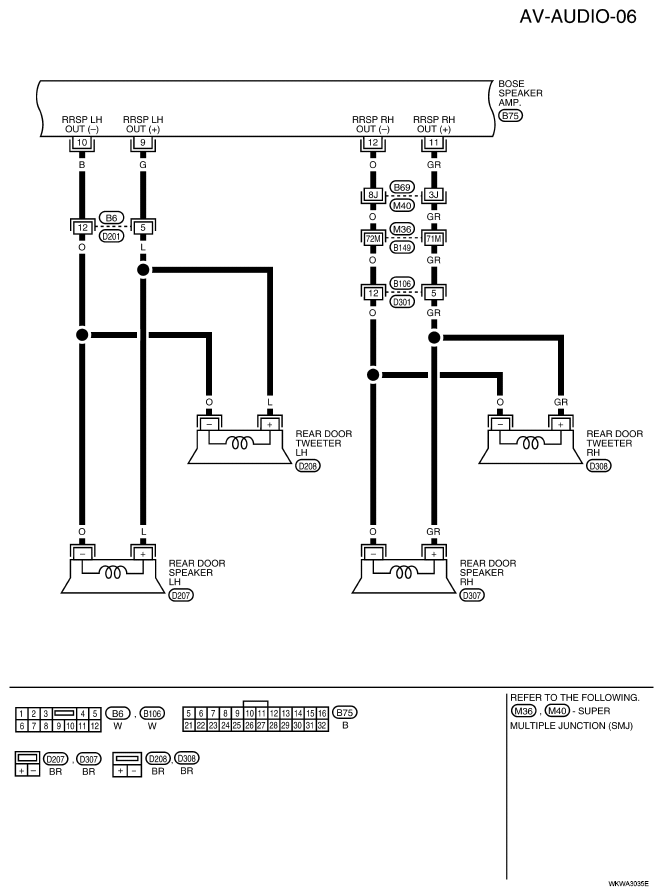

Fig 4: Identifying Bose System Wiring Diagram - AV-AUDIO-06

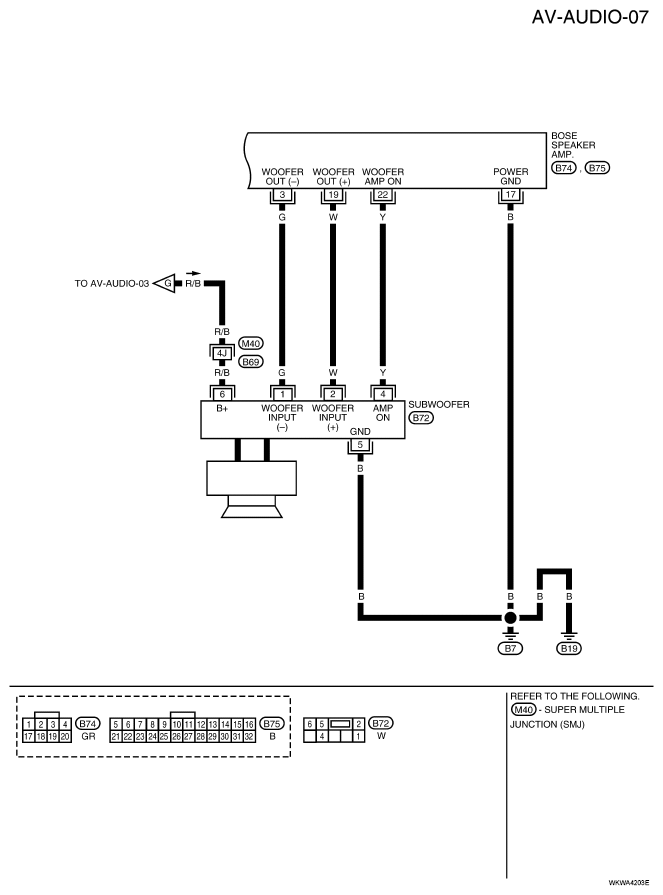

Fig 5: Identifying Bose System Wiring Diagram - AV-AUDIO-07

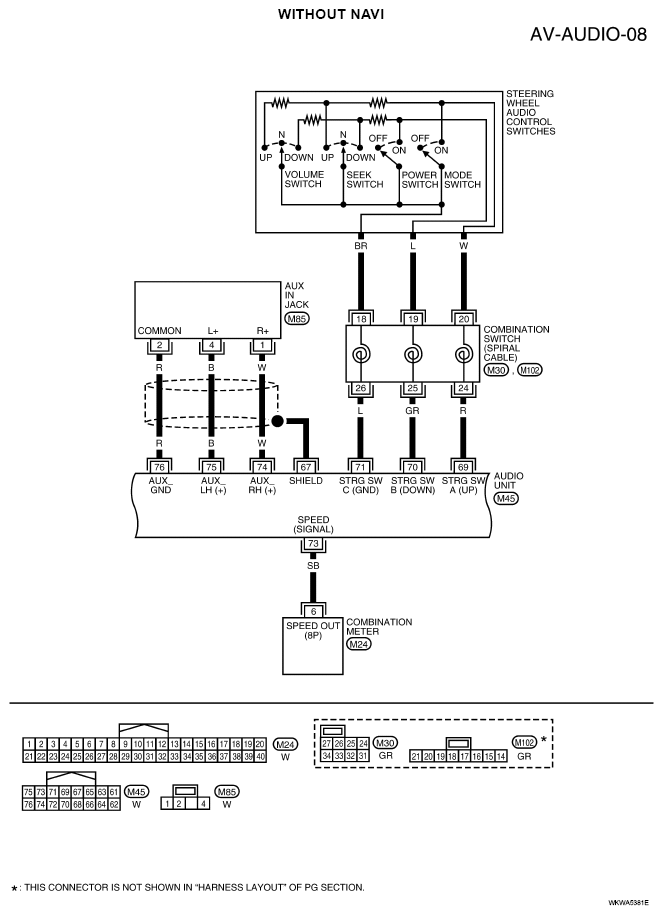

Fig 6: Identifying Bose System Without NAVI Wiring Diagram - AV-AUDIO-08

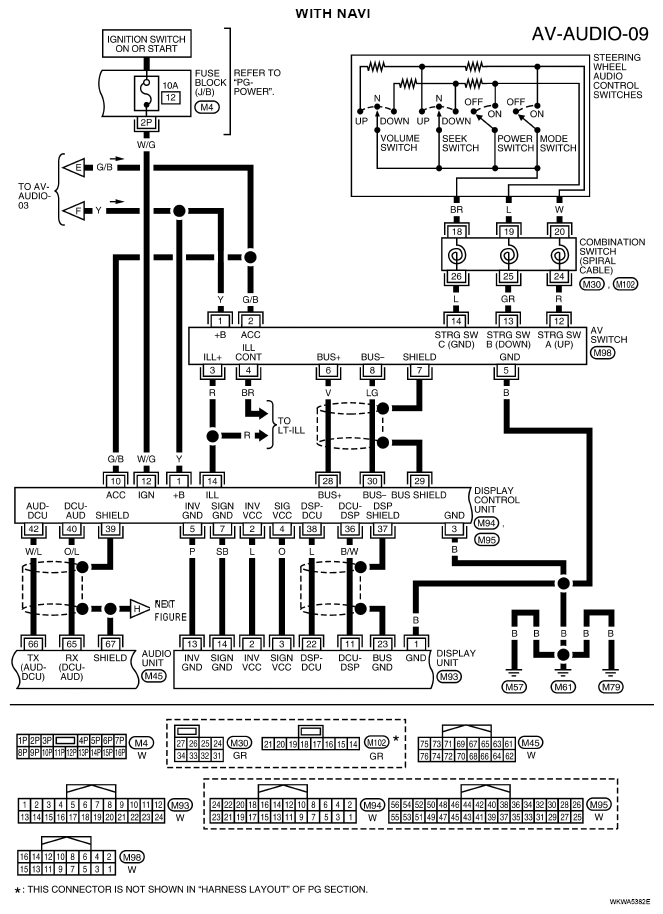

Fig 7: Identifying Bose System With NAVI Wiring Diagram - AV-AUDIO-09

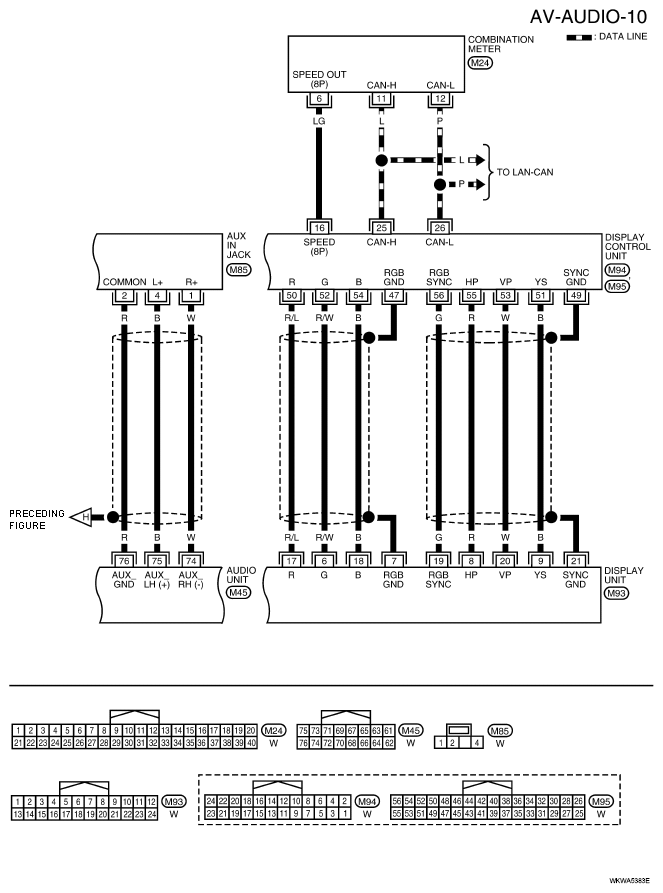

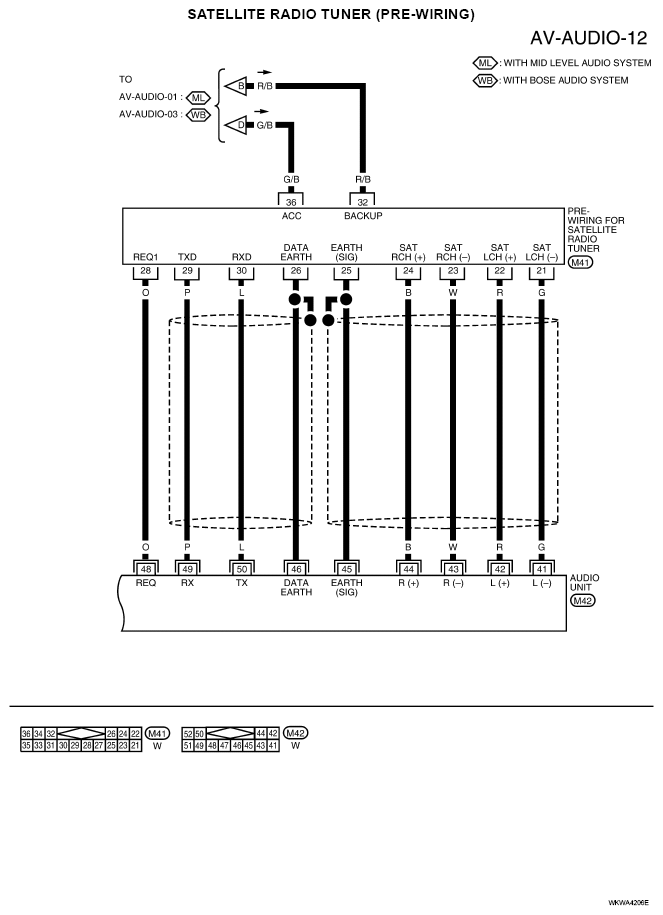

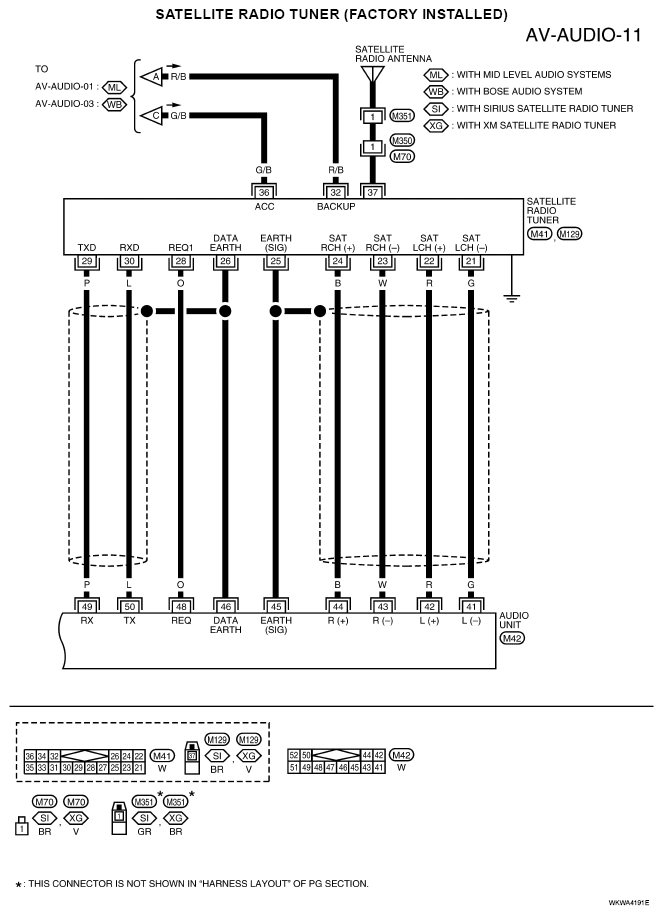

Fig 8: Identifying Bose System With NAVI Wiring Diagram - AV-AUDIO-10
