BOSE System (Without NAVI)

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

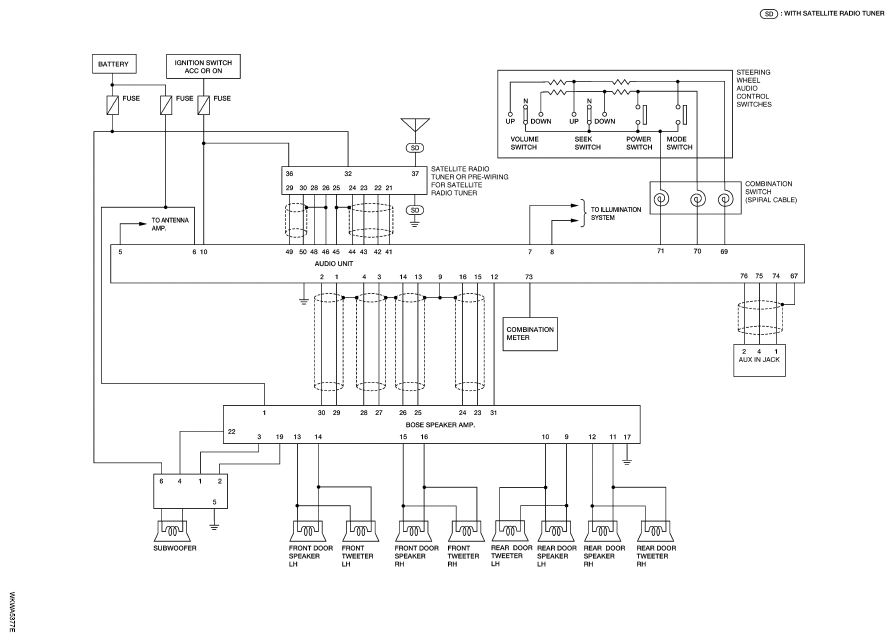

Fig 1: Identifying Bose System (Without NAVI) Audio Schematic
G04914158
