WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

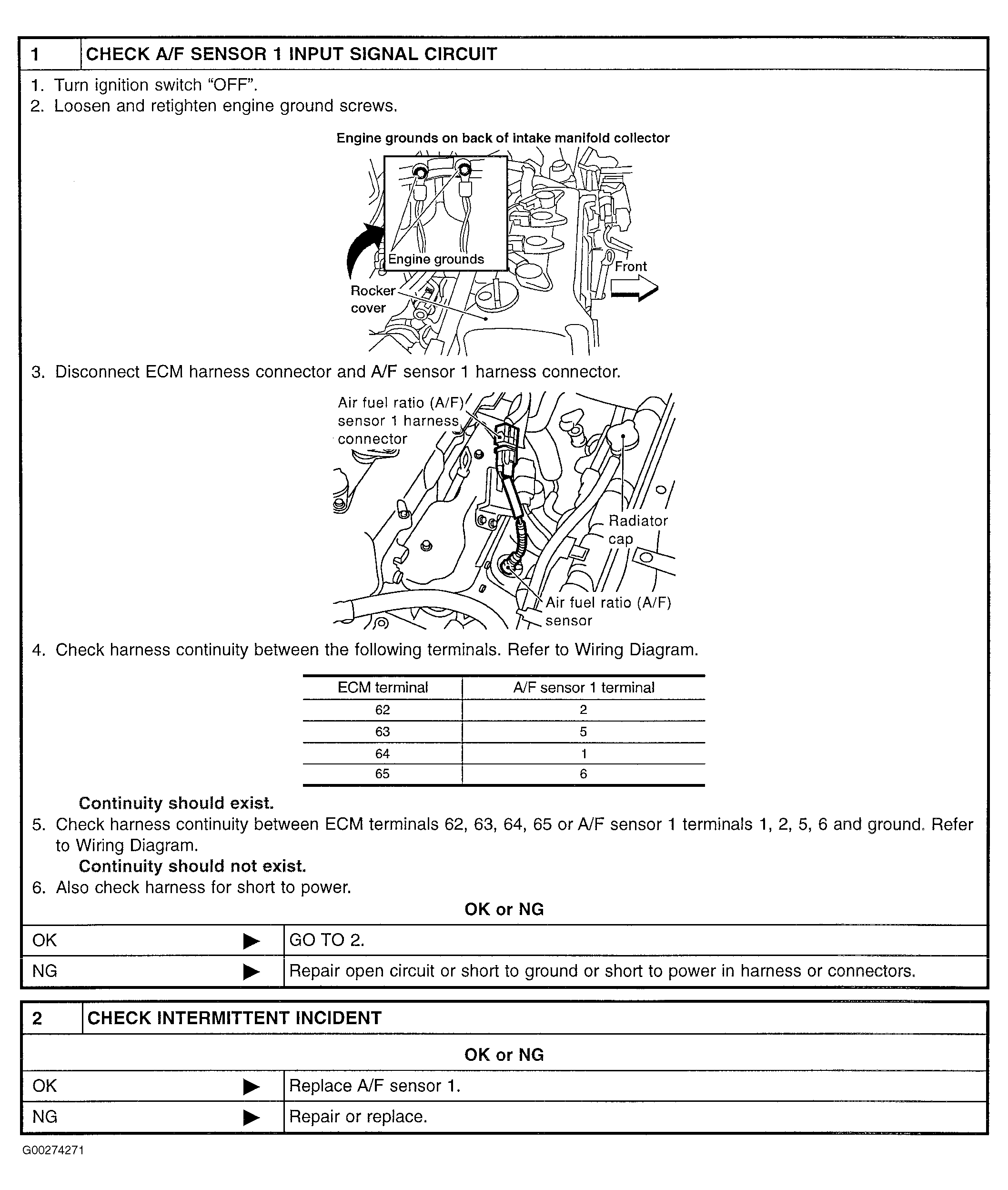

For A/F sensor (sensor 1) circuit wiring diagram and diagnostic procedure, see Figure
and Figure
.
