Component Description & DTC Set Criteria

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For component description and DTC set criteria, see Fig 1 .

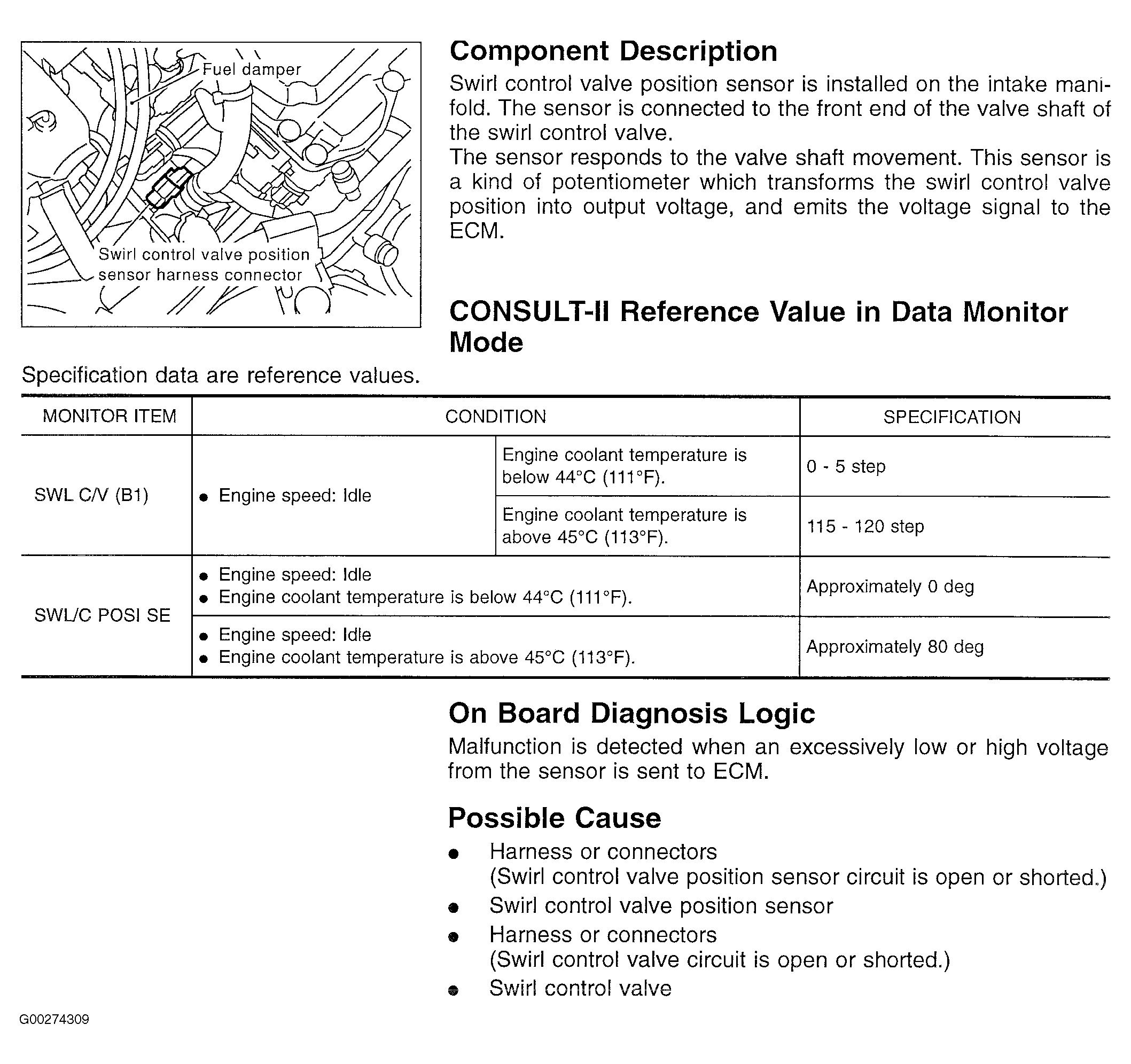

Fig 1: Component Description & DTC Set Criteria
G00274309Courtesy of NISSAN MOTOR CO., U.S.A.
