Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For MAP sensor circuit wiring diagram, see Fig 1 . For diagnostic procedure, see Fig 2 - Fig 4 .

For PCM location and connector terminal identification, see Figure and Figure . For engine control components locations, see Figure -Figure . For testing of systems or components, see SYSTEM & COMPONENT TESTING article. For removal and installation of components, see REMOVAL & INSTALLATION article.

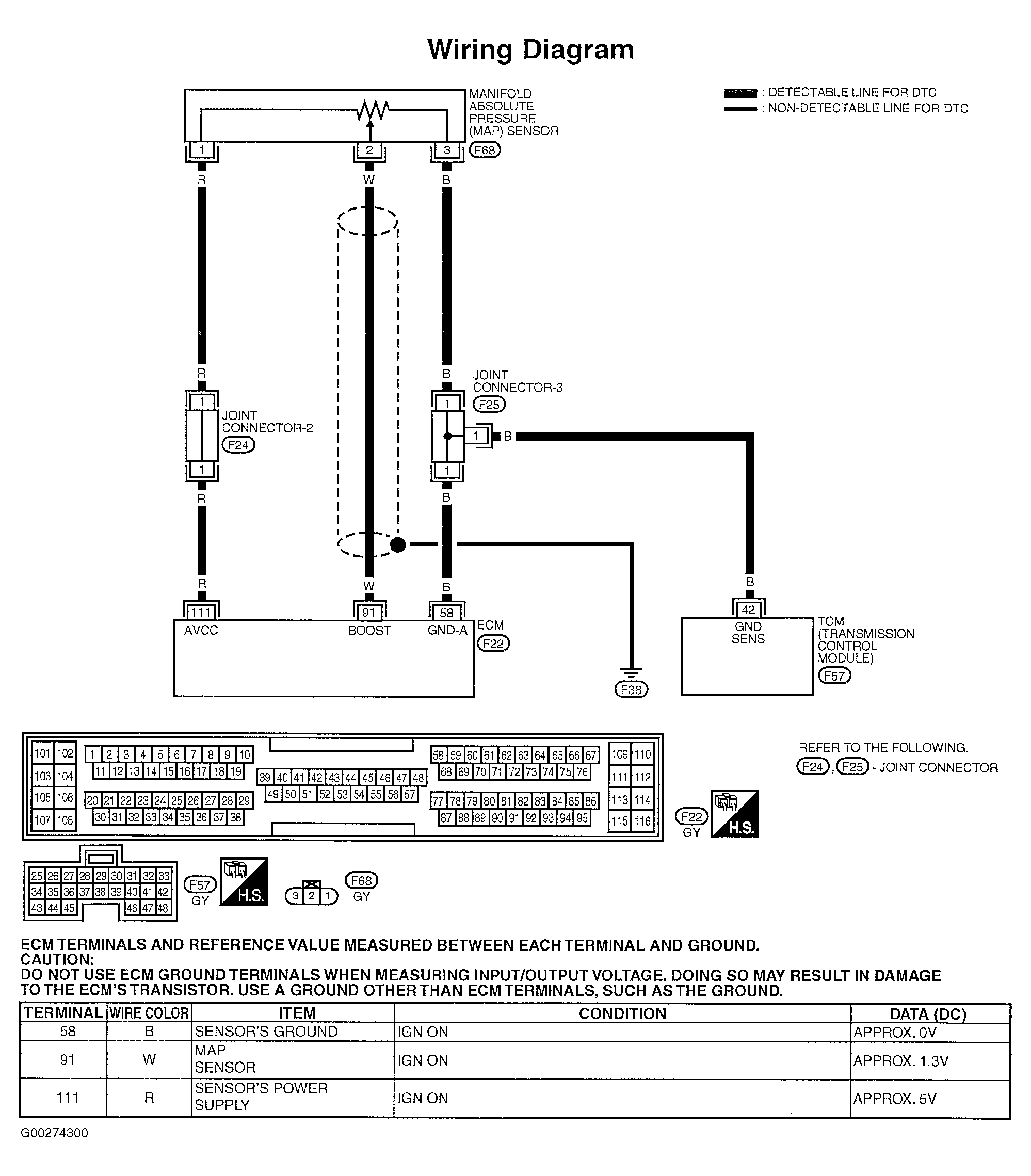

Fig 1: Manifold Absolute Pressure Sensor Circuit Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

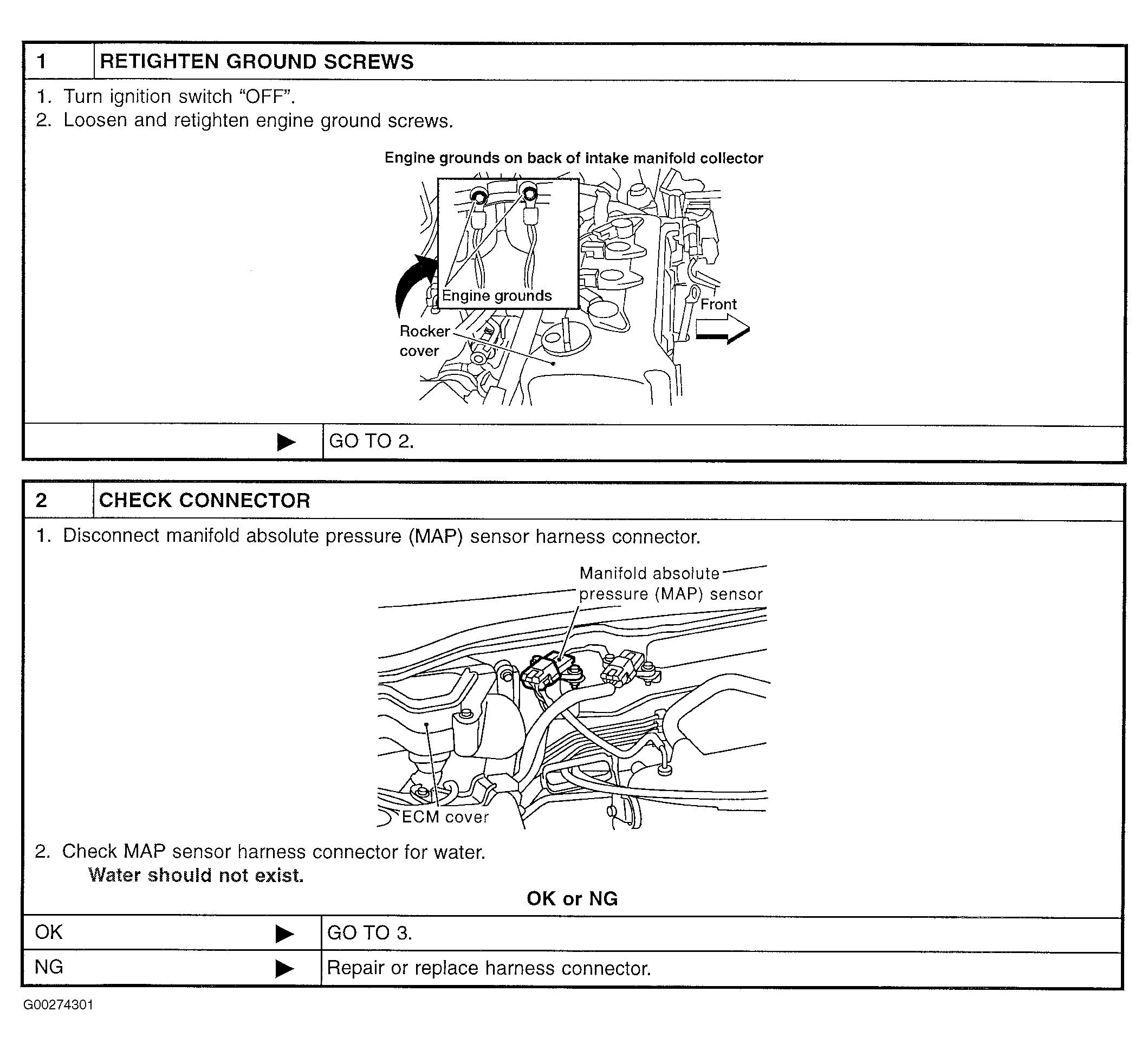

Fig 2: DTC P1103, DTC P1104 Or DTC P1108 Diagnostic Procedure (Steps 1-2)

Courtesy of NISSAN MOTOR CO., U.S.A.

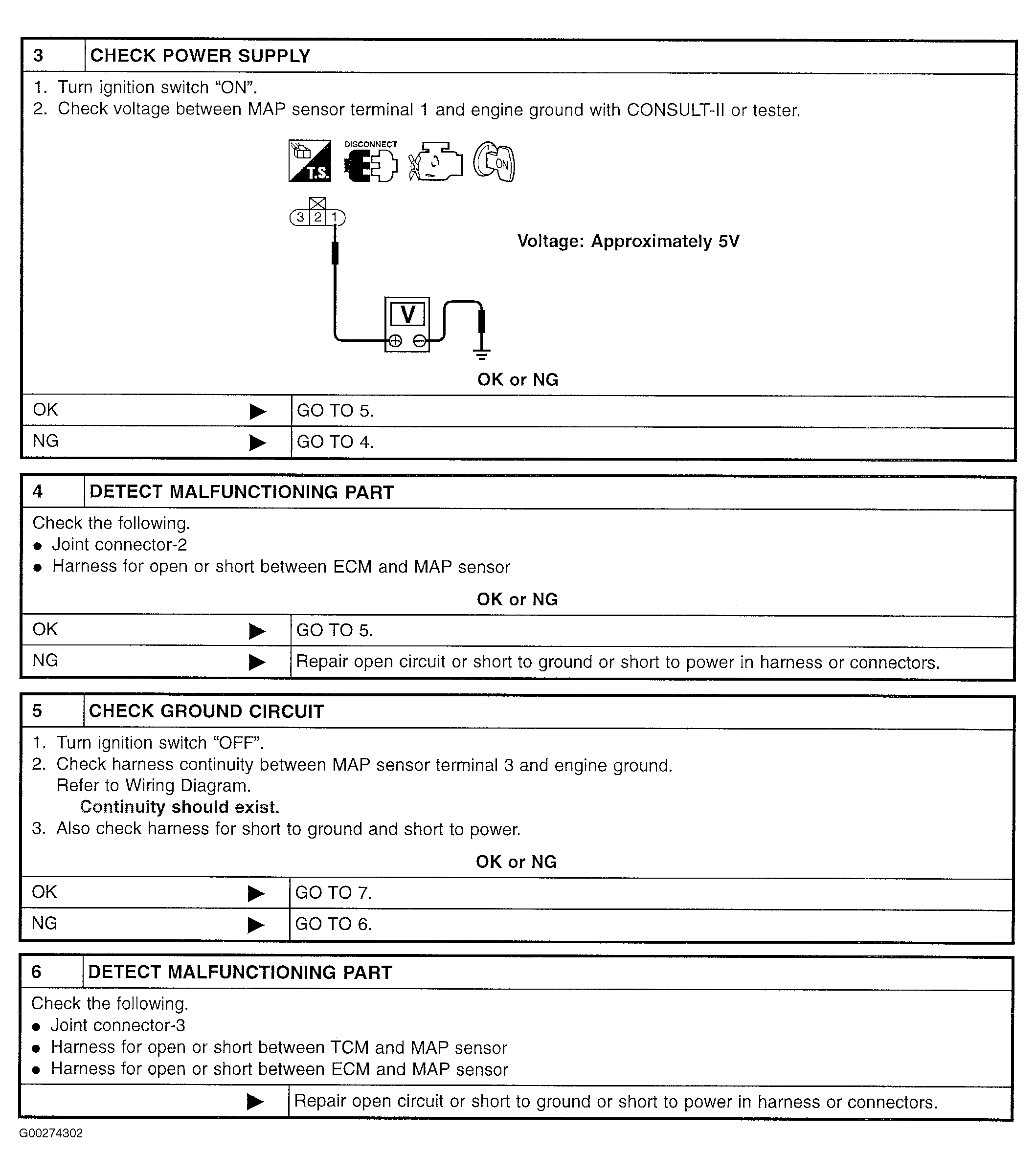

Fig 3: DTC P1103, DTC P1104 Or DTC P1108 Diagnostic Procedure (Steps 3-6)

Courtesy of NISSAN MOTOR CO., U.S.A.

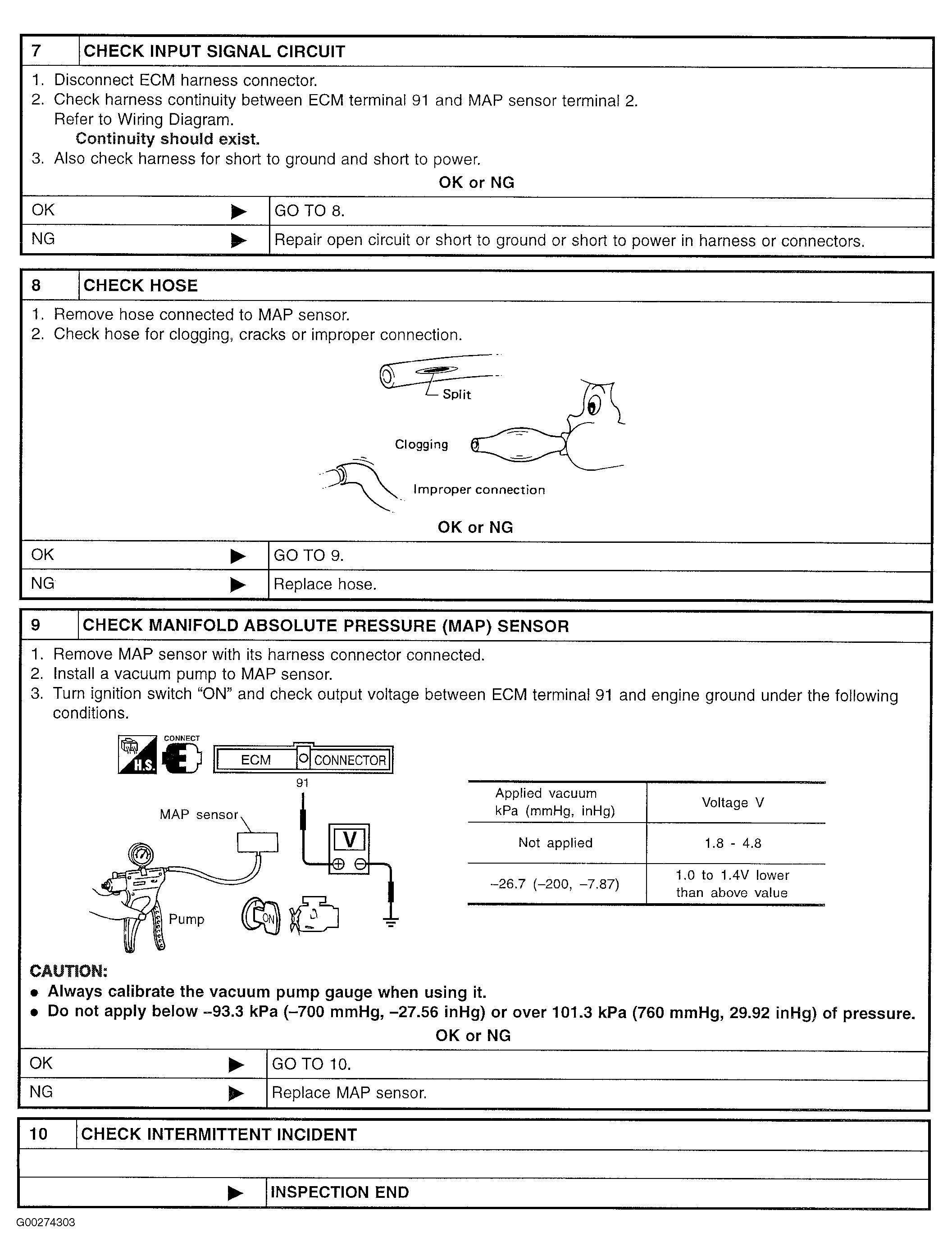

Fig 4: DTC P1103, DTC P1104 Or DTC P1108 Diagnostic Procedure (Steps 7-10)

Courtesy of NISSAN MOTOR CO., U.S.A.
