Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

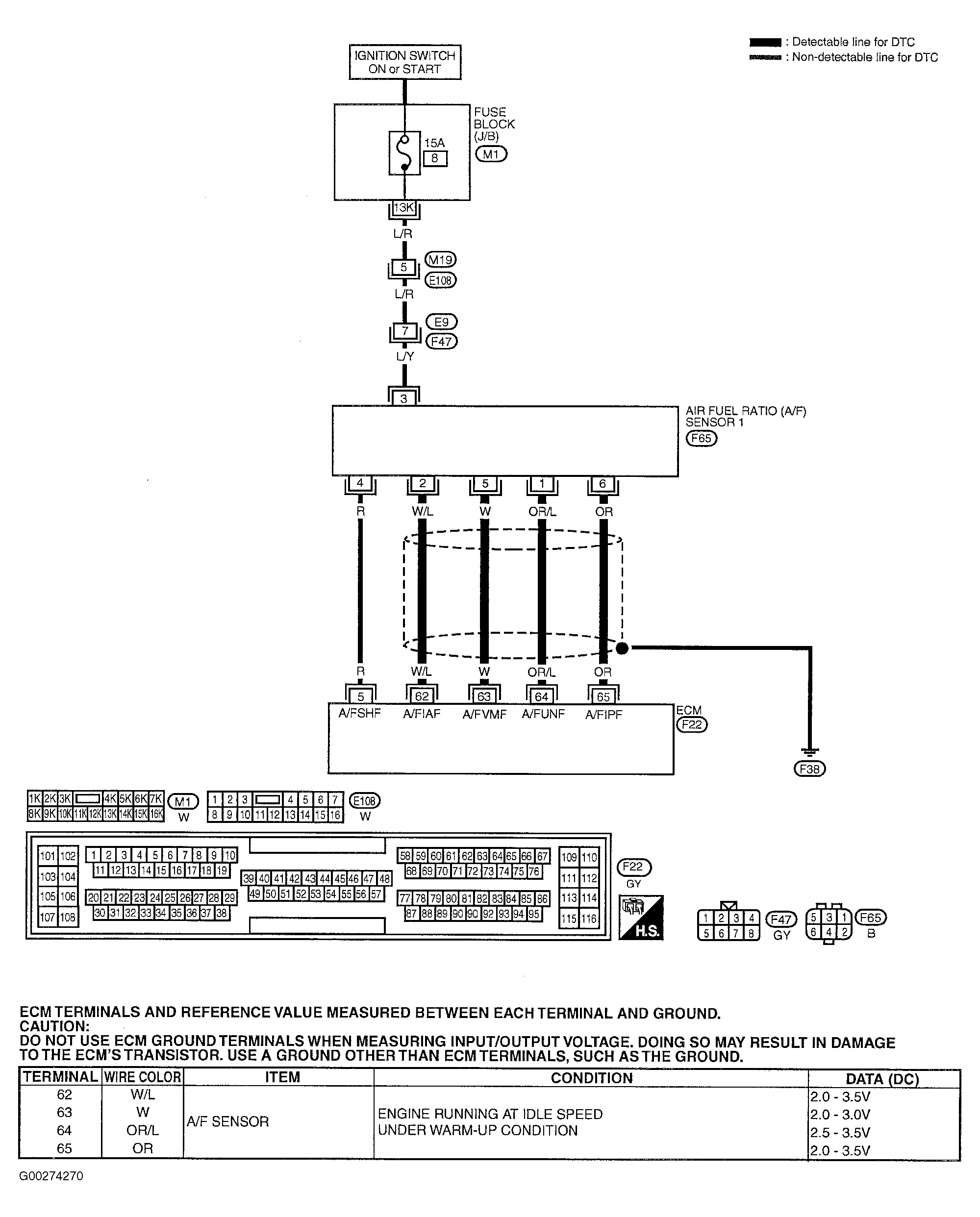

For A/F sensor (sensor 1) circuit wiring diagram, see Figure . For diagnostic procedure, see Fig 1 and Fig 2 . For A/F sensor heater component inspection, see Figure .

For PCM location and connector terminal identification, see Figure and Figure . For engine control components locations, see Figure - Figure . For testing of systems or components, see SYSTEM & COMPONENT TESTING article. For removal and installation of components, see REMOVAL & INSTALLATION article.

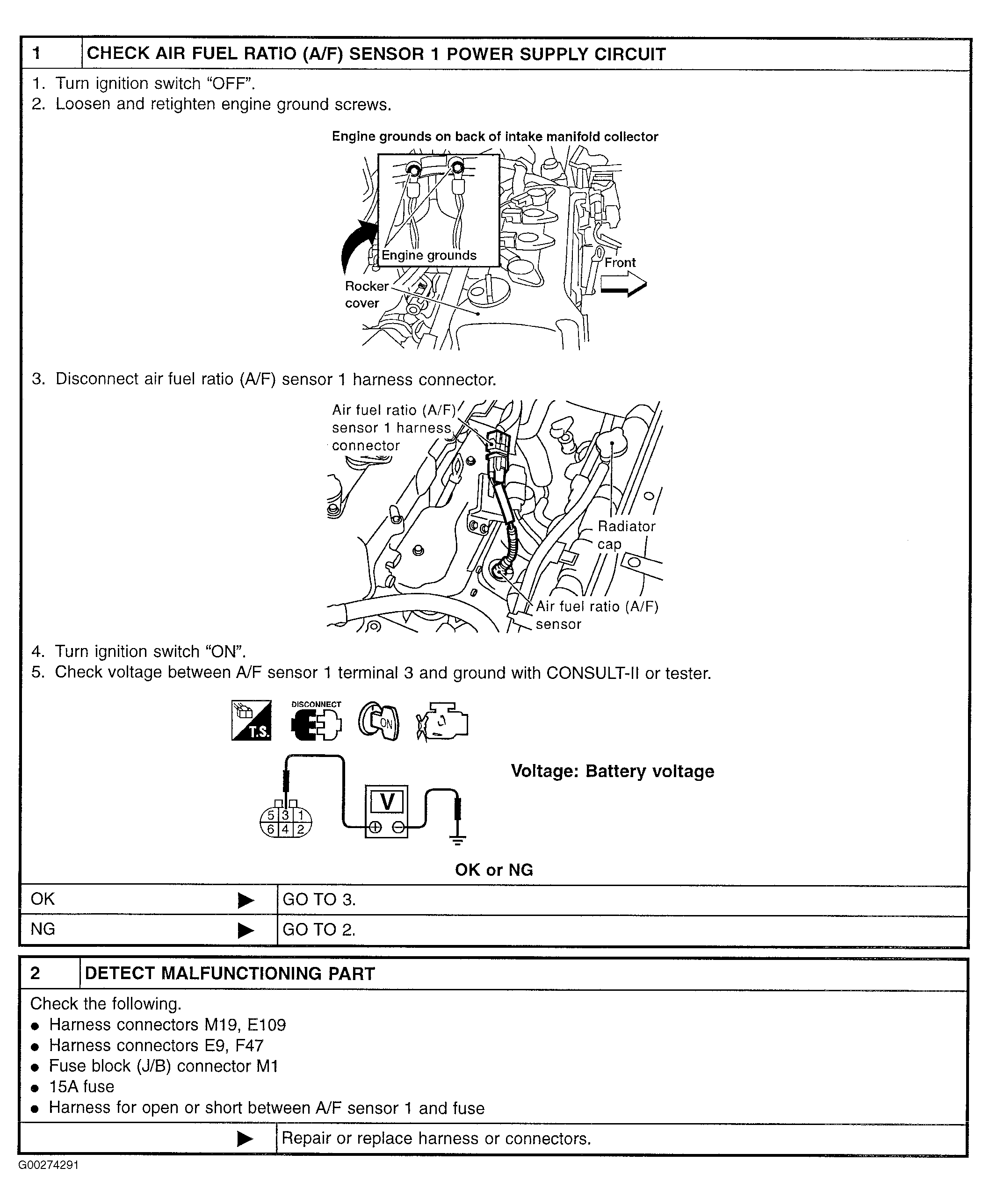

Fig 1: DTC P1031 Or DTC P1032 Diagnostic Procedure (Steps 1-2)

Courtesy of NISSAN MOTOR CO., U.S.A.

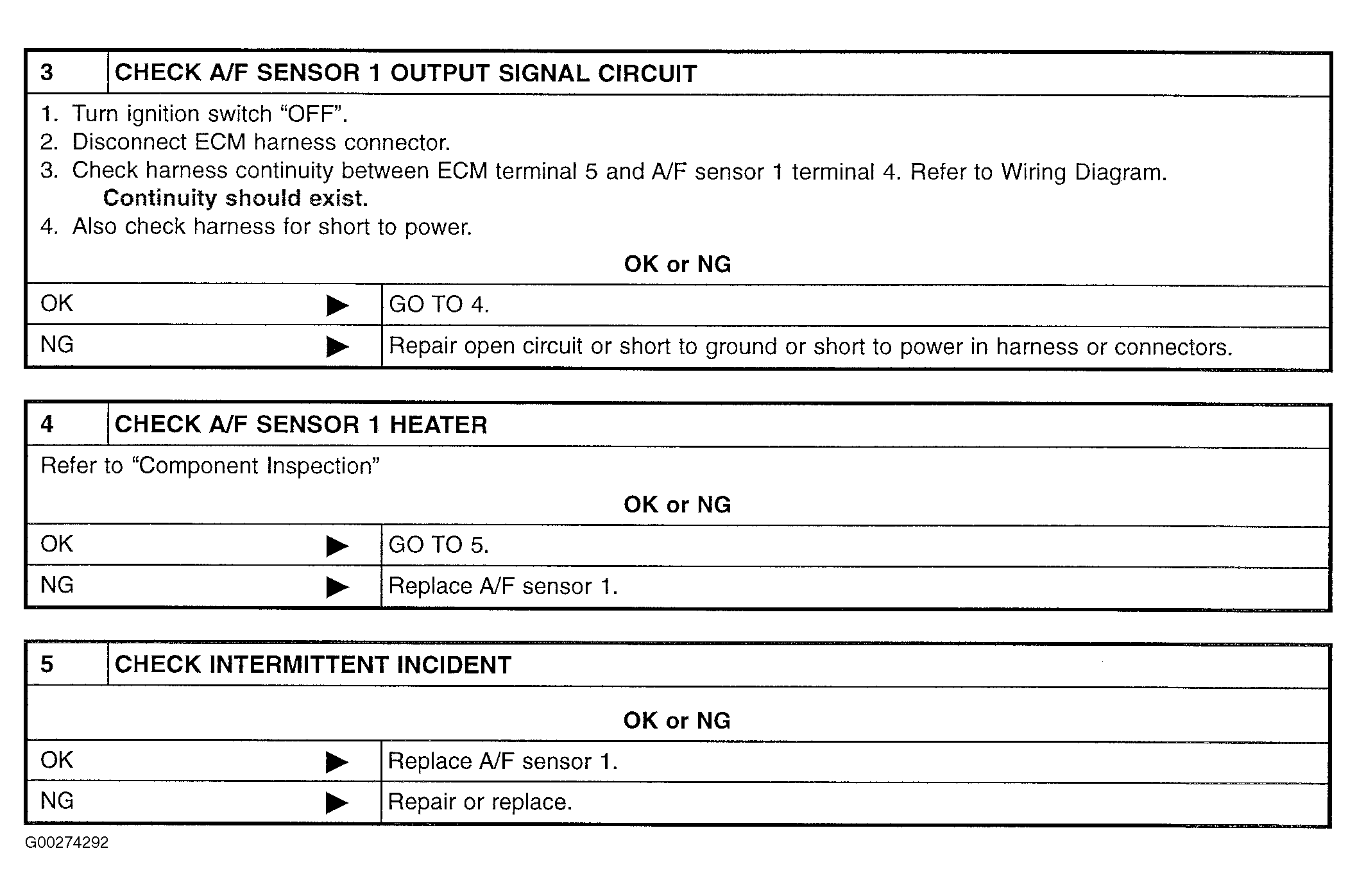

Fig 2: DTC P1031 Or DTC P1032 Diagnostic Procedure (Steps 3-5)

Courtesy of NISSAN MOTOR CO., U.S.A.
