DTC Confirmation Procedure
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
DTC will set when the current amperage in the Air/Fuel ratio (A/F) sensor (sensor 1) heater circuit is out of the normal range. (An improper voltage drop signal is sent to ECM through the front heated oxygen sensor heater). Possible causes are:
- Air/Fuel ratio (A/F) sensor (sensor 1) heater circuit is open or shorted.
- Defective Air/Fuel ratio (A/F) sensor (sensor 1) heater.

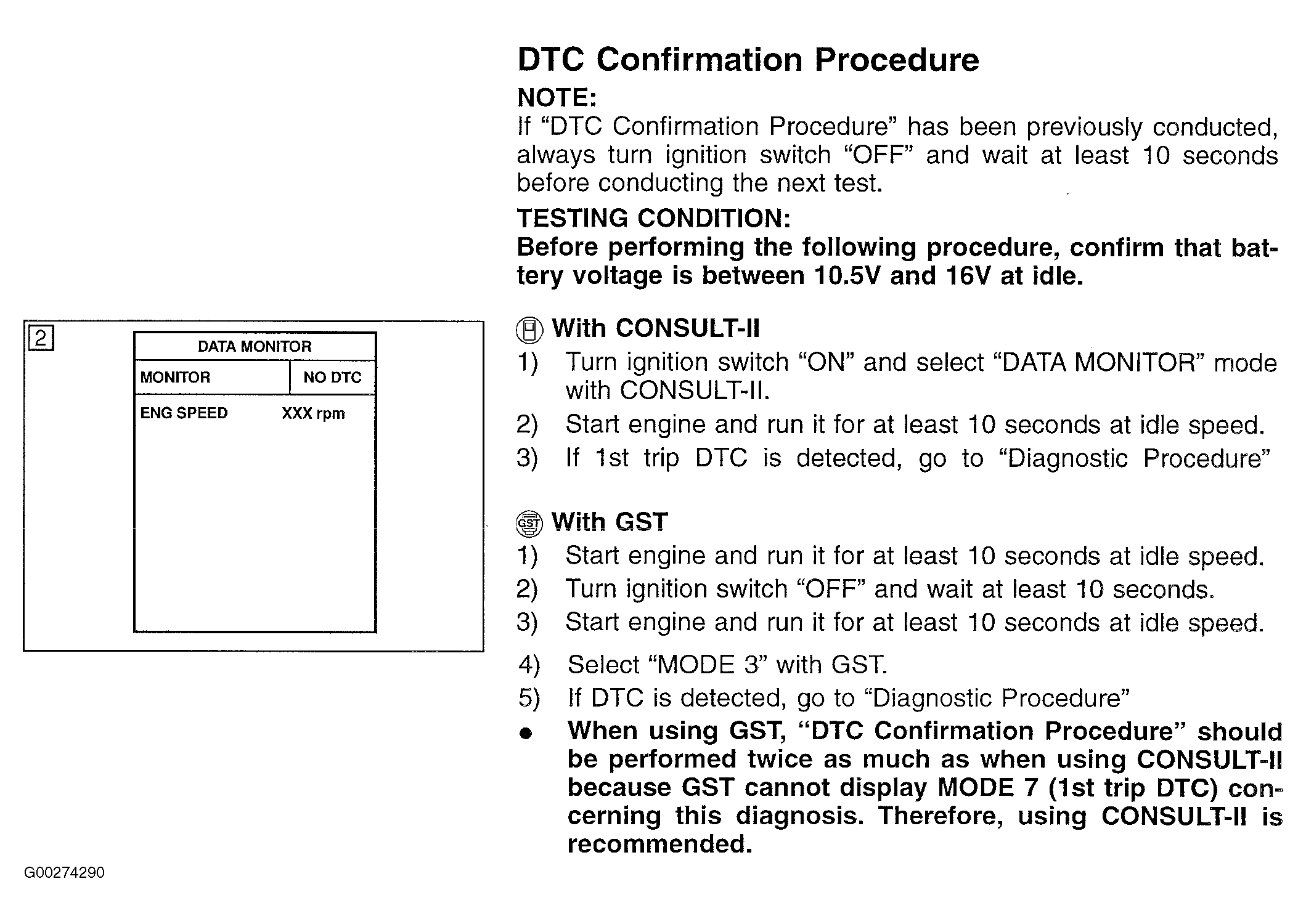

For DTC confirmation procedure, see Fig 1 .
