Wiring Diagram - T/F -

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER .

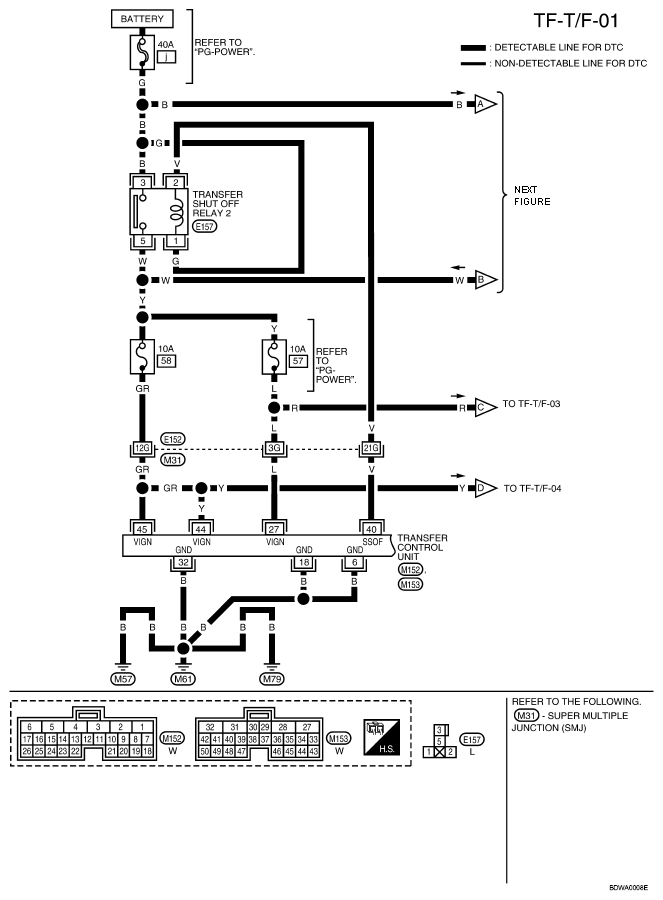

Fig 1: Identifying Wiring Diagram - TF-T/F-01

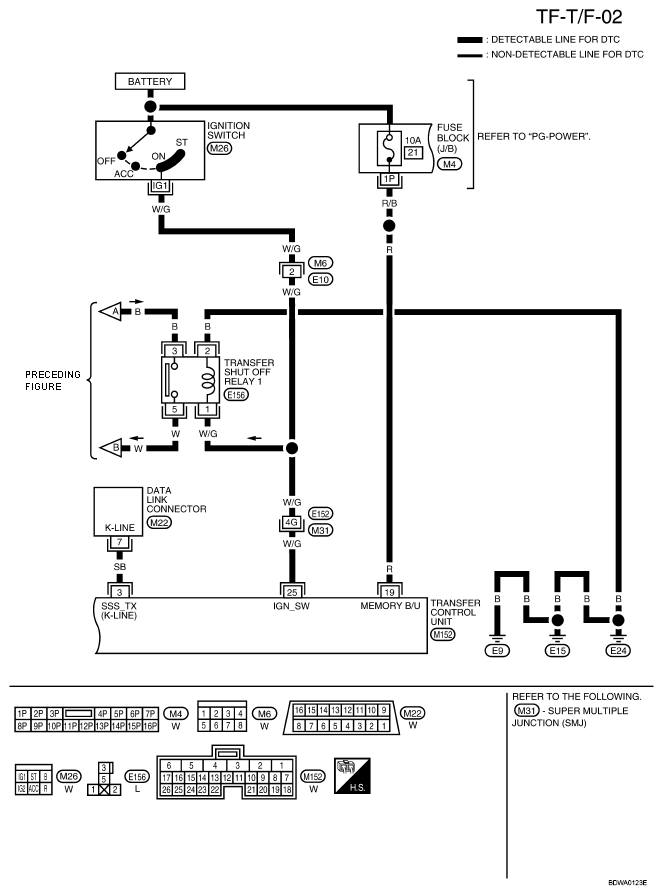

Fig 2: Identifying Wiring Diagram - TF-T/F-02

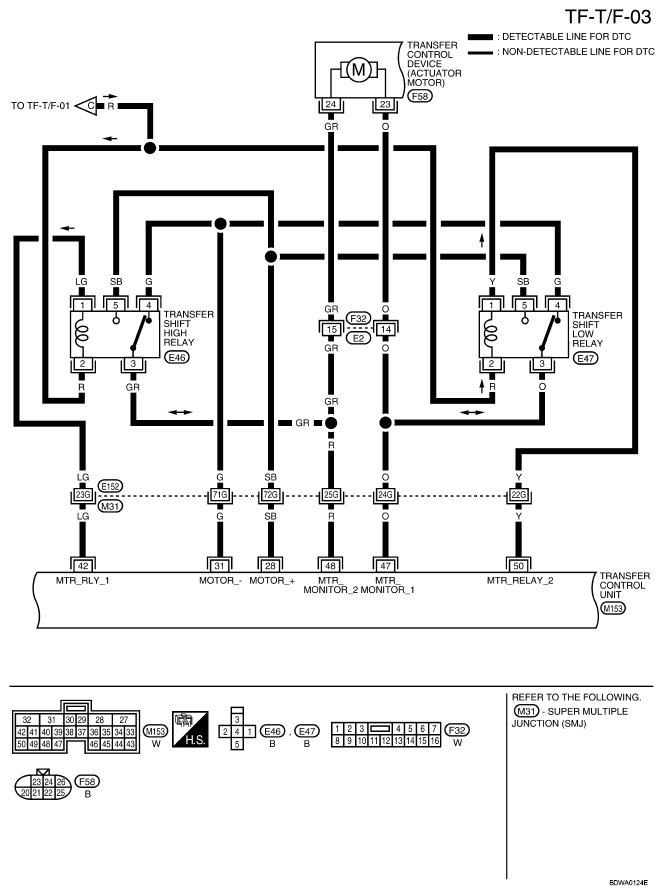

Fig 3: Identifying Wiring Diagram - TF-T/F-03

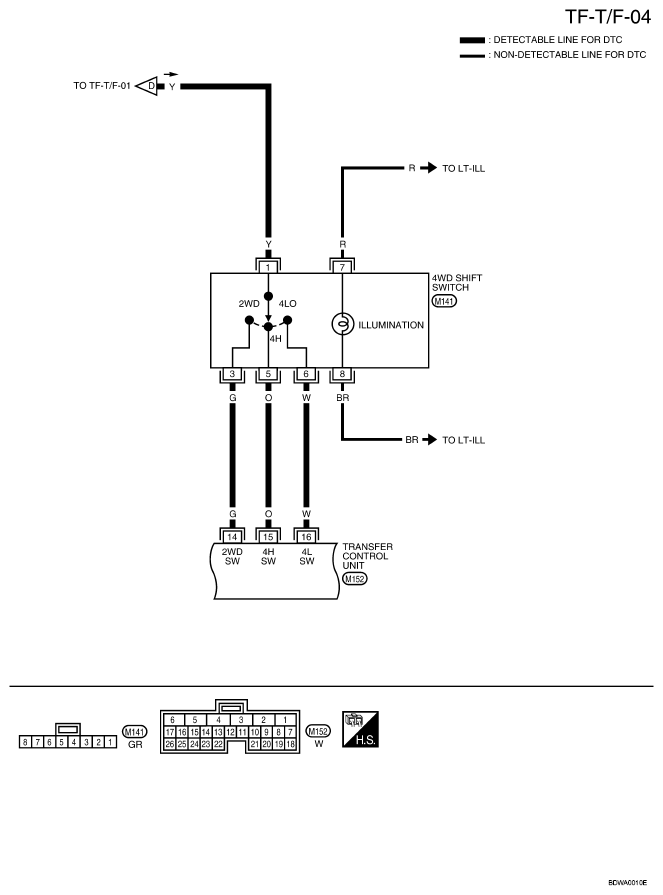

Fig 4: Identifying Wiring Diagram - TF-T/F-04

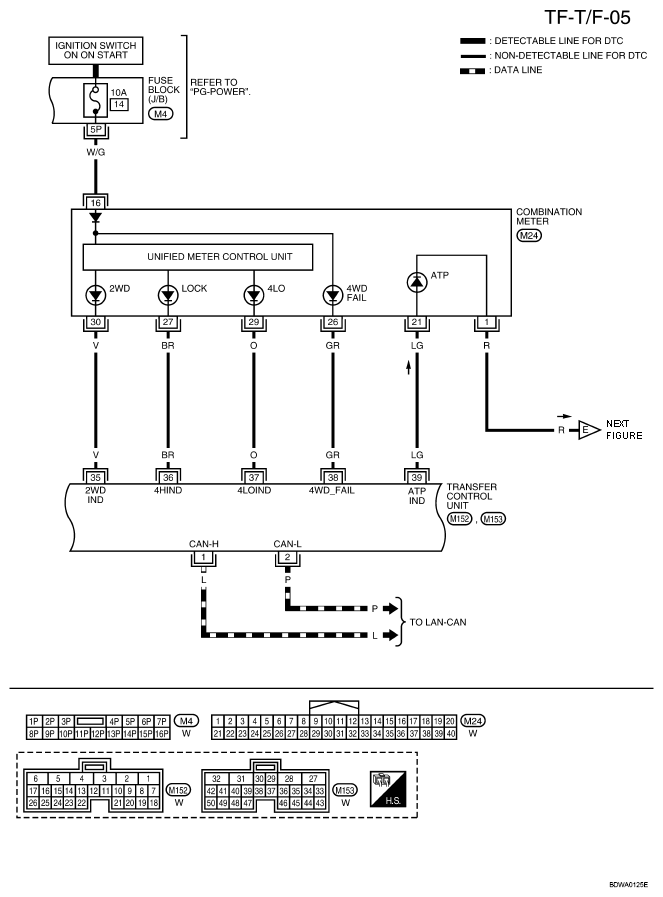

Fig 5: Identifying Wiring Diagram - TF-T/F-05

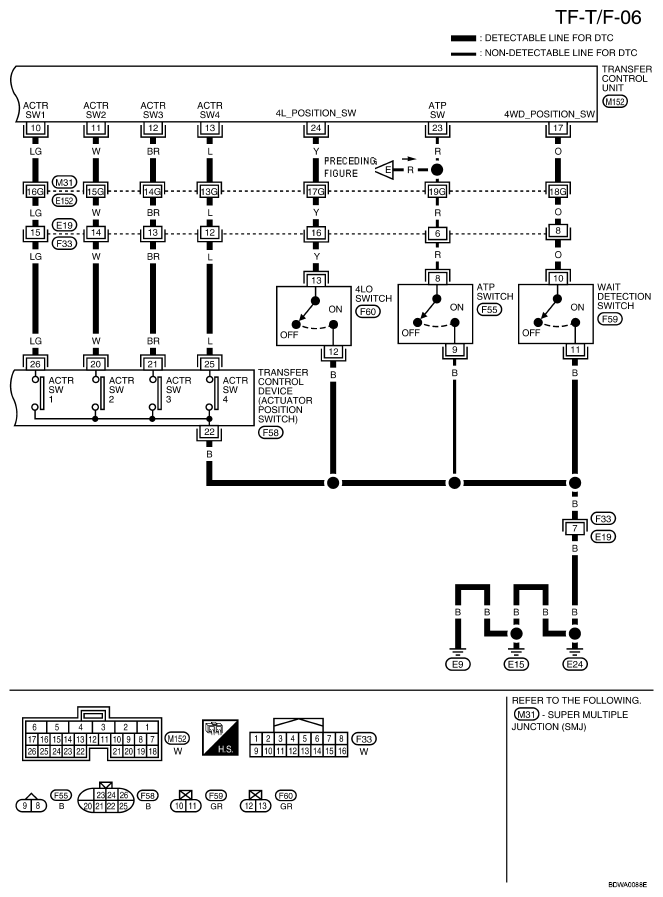

Fig 6: Identifying Wiring Diagram - TF-T/F-06
