POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER

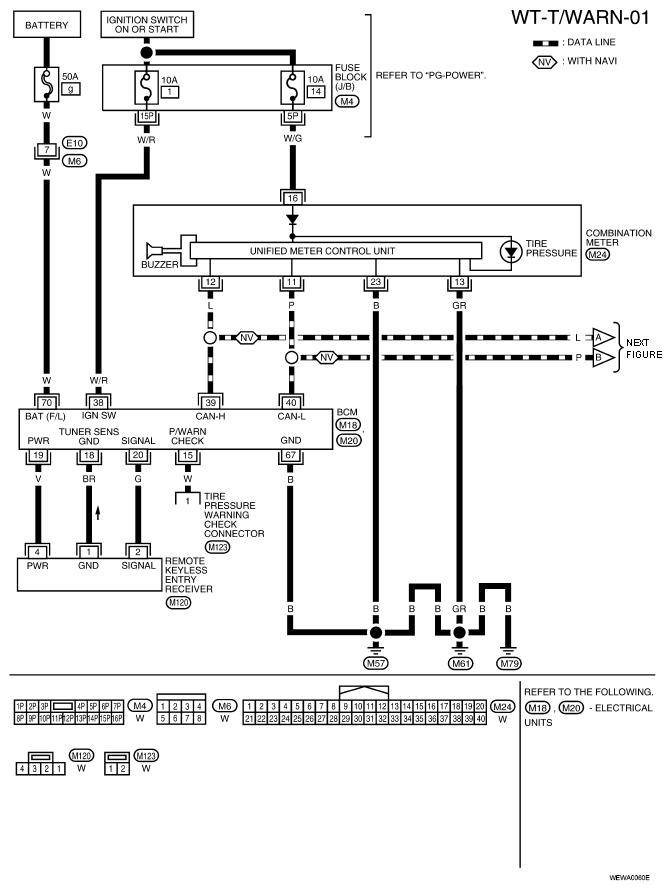

Fig 1: Identifying Wiring Diagram - WT-T/WARN-01

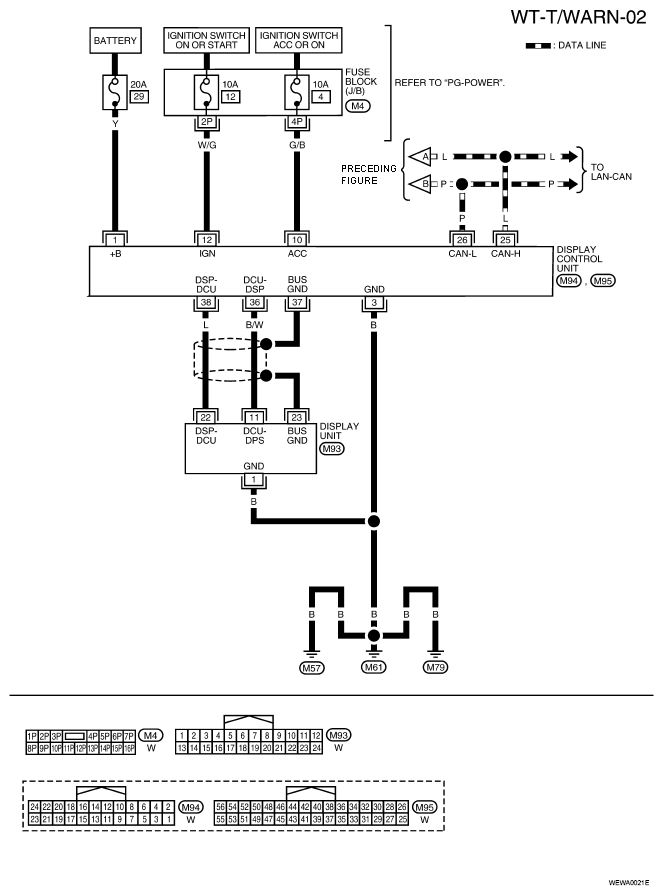

Fig 2: Identifying Wiring Diagram - WT-T/WARN-02
